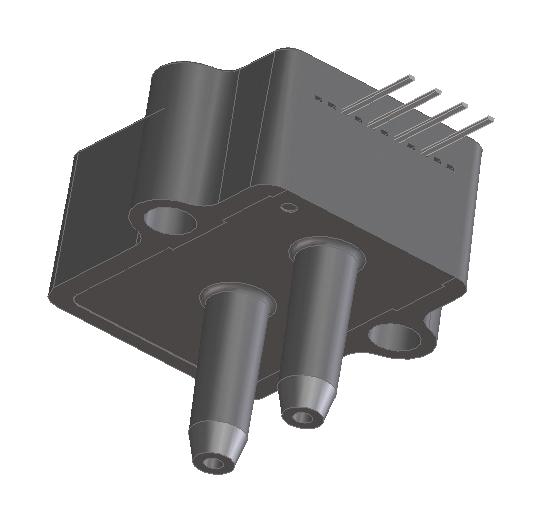

AMPHENOL ALL SENSORS 025INCHD4V Low Pressure Sensor
The ADCA series of amplified low-pressure sensors utilize proprietary technology to minimize output offset and common mode errors. They provide a ratiometric 4V output with superior stability over temperature, long-term use, and positional variability. Designed for non-corrosive fluids like dry gases and air, these sensors offer calibrated zero and span, with options available for standard, industrial, and military temperature ranges. Their high linearity and stability make them ideal for medical, environmental, and HVAC applications, ensuring accurate pressure measurement across a wide range of conditions.
AMPHENOL ALL SENSORS 025INCHD4V Low Pressure Sensor Specifications:
- Pressure Ranges: 0.25 to 60 inches H2O, 65 to 15000 Pa
- Output: Ratiometric 4V with temperature compensation
- Supply Voltage: 4.5 to 5.5 VDC
- Temperature Ranges: Standard 5°C to 50°C, Industrial -25°C to 85°C, Military -40°C to 125°C
- Environmental Limits: Humidity 0-95% RH (non-condensing), Lead Temperature Max 270°C
- Proof Pressure: 40 to 500 inH2O, 10 to 1250 kPa with burst pressures up to 800 kPa depending on model
- Operating & Storage Temperature: -40°C to 125°C
- Output Span Error: 0.05–0.25%FSS, Offset Drift: ~20 mV/ year, Linearity & Hysteresis: 0.05–0.25%FSS
- Response Time: less than 500 microseconds for 90% pressure change
- Connections: Pinout includes Vs, Gnd, Vout, not connected pin, compatible with typical low-pressure measurement setups
Buy the ADCA Series Low Pressure Sensors: 025INCHD4V
Enhance your pressure measurement systems with our ADCA series low pressure sensors, engineered for accuracy and stability. These sensors feature a ratiometric 4V output, are available in standard, industrial, and military temperature ranges, and are suitable for non-corrosive gases such as air and dry gases. With fast response times under 500 microseconds, they provide precise readings over a wide temperature span from -40°C to 125°C. Reliable and easy to integrate, order online today for superior performance in your instrumentation or HVAC systems.
Buy ADCA series low pressure sensors now and experience unmatched precision, stability, and reliability for your monitoring and control applications.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 025INCHD4V?
You can click on the BUY or RFQ button to purchase 025INCHD4V from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 025INCHD4V?
You can download the 025INCHD4V datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 025INCHD4V?
AMPHENOL ALL SENSORS
