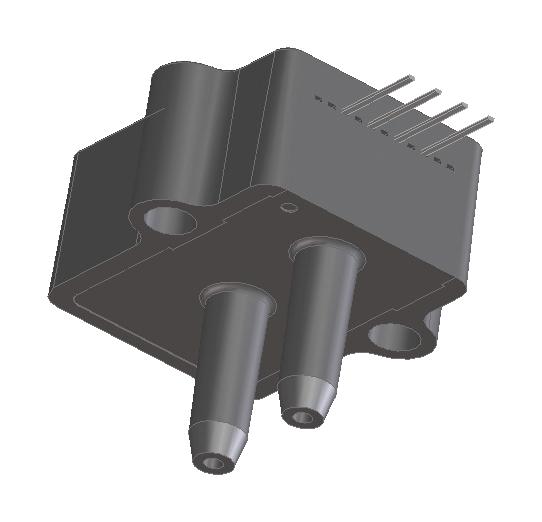

AMPHENOL ALL SENSORS 05INCHD4V Low Pressure Sensor
The ADCA series of amplified low pressure sensors are designed for precise measurement of pressure ranges from 0.25 to 60 inches of water. Utilizing proprietary technology, these sensors feature a ratiometric 4-volt amplified output with excellent offset characteristics and stability over temperature, long-term use, and positional changes. They are ideal for applications in medical instrumentation, environmental controls, and HVAC systems, providing accurate and stable measurements with temperature compensation. Their construction is suitable for non-corrosive, dry gases, offering reliable performance in Standard, Industrial, and Military temperature ranges.
AMPHENOL ALL SENSORS 05INCHD4V Low Pressure Sensor Specifications:
- Pressure Ranges: 0.25 to 60 inches of water
- Output: Ratiometric 4V
- Supply Voltage: 4.5 to 5.5 VDC
- Temperature Range: Standard 5°C to 50°C, Industrial -25°C to 85°C, Military -40°C to 125°C
- Humidity Limits: 0 to 95% RH (non-condensing)
- Proof Pressure: Up to 200 inH2O depending on model
- Burst Pressure: Ranges from 20 to 300 inH2O, calibrated to operating range
- Lead Soldering Temperature: Max 270°C (2-4 sec)
- Input Pressure: Differential and Gage configurations available
- Output Offset and Span: Calibrated, temperature compensated
- Response Time: Less than 500 microseconds
- Lead Wires: Standard connection pins
- Dimensions: Compact, with specified dimensions per model
- Applications: Medical electronics, environmental monitoring, HVAC control systems
Buy the ADCA Series Low Pressure Sensors: 0.25 to 60 Inches Water 4V Output
Order the ADCA series low pressure sensors online today to ensure accurate, stable measurements in your environmental, HVAC, or medical applications. These sensors provide a ratiometric 4-volt amplified output with excellent offset stability, temperature compensation, and fast response times. Designed for non-corrosive gases, they support a wide range of pressure ranges from 0.25 to 60 inches of water. Their robust construction, suitable for standard, industrial, and military temperature ranges, delivers dependable performance in demanding environments. Enjoy seamless online shopping and quick delivery of this high-quality pressure sensing solution.
Buy ADCA series low pressure sensors now and experience unmatched reliability and performance for precise pressure measurement in critical systems.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 05INCHD4V?
You can click on the BUY or RFQ button to purchase 05INCHD4V from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 05INCHD4V?
You can download the 05INCHD4V datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 05INCHD4V?
AMPHENOL ALL SENSORS
