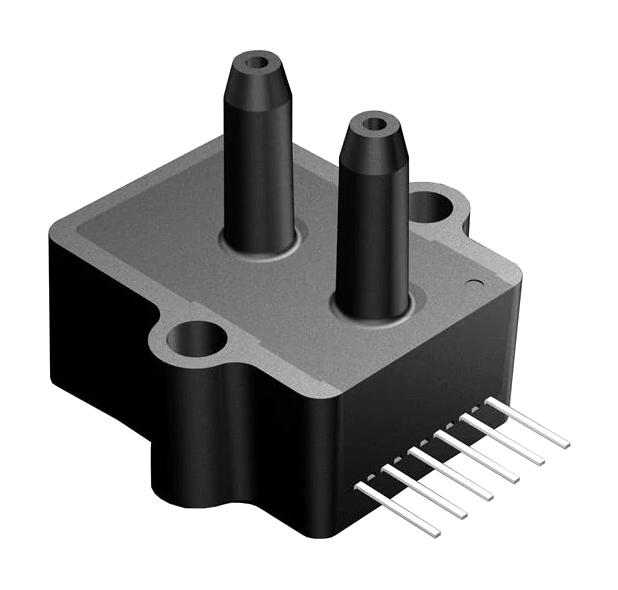

AMPHENOL ALL SENSORS 05INCHDMV Low Pressure Sensor
The low pressure millivolt output sensors are designed for precise measurement of pressures from 0 to 1, 5, 20, or 30 inches H₂O. Featuring a silicon micromachined, stress-concentrated structure, these sensors provide high linearity, reduced output offset errors, and temperature compensation essential for applications like medical instrumentation and environmental controls. They operate from a 0-16 VDC supply, offer calibrated zero and span, and are suitable for non-corrosive, dry gases, with proven performance in various pressure ranges, ensuring stability and accuracy over a wide temperature range from -25°C to 85°C.
AMPHENOL ALL SENSORS 05INCHDMV Low Pressure Sensor Specifications:
- Pressure Ranges: 0-1" H₂O, 0-5" H₂O, 0-20" H₂O, 0-30" H₂O
- Output Span: 9.0 to 11.0 mV at full scale
- Offset Temperature Shift: ±250 uV (0°C-50°C), ±150 uV (0°C-70°C)
- Offset Position Sensitivity: ±5.0 uV (0.5", 1", 2", 5", 10", 30" ranges)
- Linearity and Hysteresis: < 0.25% Full Scale
- Supply Voltage: 0-16 VDC
- Response Time: < 100 microseconds to 90% pressure change
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Humidity: 0-95% RH (non-condensing)
- Burst Pressure: up to 200-500 psig depending on model
- Proof Pressure: up to 100-200 psig depending on model
- Electrical Resistance: Output Resistance 1.5 kΩ, Input Resistance 4.5 kΩ
- Approvals: UL and RoHS compliant
Buy the All Sensors Series Low Pressure Millivolt Sensor: 05INCHDMV
Purchase the All Sensors Low Pressure Sensor series online today for reliable, accurate pressure measurement across various industries. These sensors feature high linearity, temperature compensation, and fast response times, making them ideal for medical, environmental controls, HVAC, and instrumentation projects. Designed with silicon micromachined technology, they provide calibrated zero and span, ensuring stability and consistent performance over wide temperature ranges from -25°C to 85°C. Order now to enhance your system's precision and dependability with ease and confidence.
Order your All Sensors Series Low Pressure Millivolt Sensor today and ensure precise pressure monitoring for your critical applications with superior accuracy and stability.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 05INCHDMV?
You can click on the BUY or RFQ button to purchase 05INCHDMV from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 05INCHDMV?
You can download the 05INCHDMV datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 05INCHDMV?
AMPHENOL ALL SENSORS
