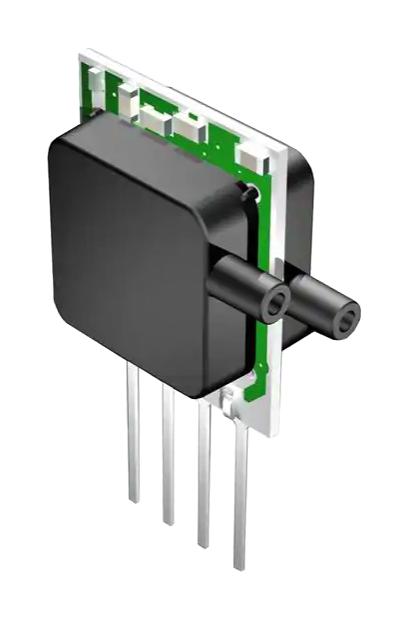

AMPHENOL ALL SENSORS 10INCHD1DIPMVMINI Low Pressure Differential Sensor
The 10INCHD1DIPMVMINI is a high-precision low pressure sensor designed for accurate measurement of pressures up to 10 inches H2O. Featuring proprietary technology, it offers a millivolt output with superb offset and temperature compensation, ensuring stability across a wide temperature range from -25°C to 85°C. The sensor is ideal for HVAC, environmental controls, and medical instrumentation, providing linear, reliable performance with a differential pressure span of approximately 19.0 to 21.0 mV. It adapts easily to various configurations with single or dual port options and operates from a supply voltage up to 16 VDC, making it suitable for diverse industrial applications.
AMPHENOL ALL SENSORS 10INCHD1DIPMVMINI Low Pressure Differential Sensor Specifications:
- Operating Range: 0-10 H2O
- Output Span: 19.0 to 21.0 mV
- Offset Temperature Shift: +150 uV (0°C-70°C)
- Offset Position Sensitivity: 45 uV (1g)
- Linearity Error: 0.05 to 0.25 %
- Supply Voltage: up to 16 VDC
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Humidity: 0 to 95% RH non-condensing
- Physical Dimensions: Configurable with single or dual ports on same or opposite sides
- Connection Type: DIP or SIP packages
- Calibration: Calibrated zero and span
- Application: HVAC, environmental, medical
- Pressure Port: One or two ports options
- Material: Compatible with dry gases and non-corrosive fluids
- Maximum Lead Temperature: 250°C
Buy the Generic Low Pressure Sensor – Reliable Differential Pressure for Industrial Applications
Purchase the 10INCHD1DIPMVMINI online today to ensure precise low-pressure measurement in HVAC, medical, and environmental control systems. Featuring proprietary technology, it offers stable, linear output with excellent temperature compensation, suitable for diverse industrial applications. Easy to install with versatile port configurations and calibrated zero and span, this sensor guarantees reliability across a wide temperature range. Order now and improve your system performance with high-quality, durable low-pressure sensors designed for accuracy and longevity.
Buy the 10INCHD1DIPMVMINI now and experience unmatched accuracy and stability in low pressure measurements.
