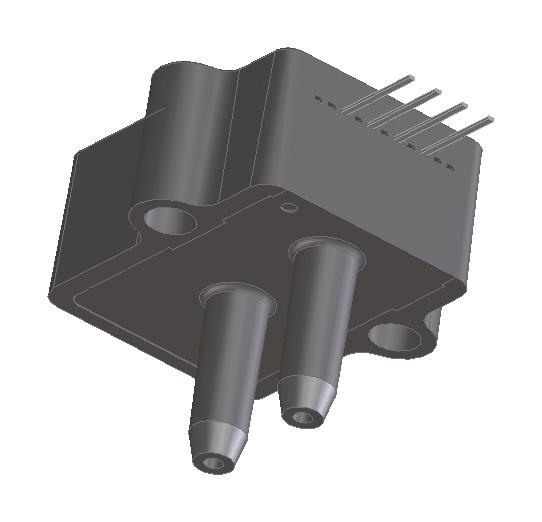

AMPHENOL ALL SENSORS 10INCHD4V Low Pressure Sensor
The 10 inch Amplified Low Pressure Sensor is designed for precise pressure measurement in various industrial, environmental, and medical applications. Featuring a ratiometric 4V amplified output, it offers high accuracy, excellent temperature compensation, and stability over wide temperature ranges from -40°C to 125°C. Its robust silicon micromachined structure ensures linearity and reduced offset errors, making it suitable for non-corrosive gases and dry air. With a pressure range up to +10 inches of water and compatibility with multiple ranges, it provides reliable, stable performance for demanding applications.
AMPHENOL ALL SENSORS 10INCHD4V Low Pressure Sensor Specifications:
- Pressure Range: +10 inches of water (From 0.25 inH20 to 40 inH20), suitable for differential and gage pressure measurements
- Output: Ratiometric 4V amplified, highly linear with reduced offset errors
- Supply Voltage: +4.5 to +5.5 VDC
- Temperature Range: Standard -5°C to 50°C, Industrial -25°C to 85°C, Military -40°C to 125°C
- Accuracy: Calibration zero and span, low offset and long-term drift, hysteresis within 0.05% FSS
- Environmental: Non-corrosive gases, dry air, humidity up to 95% RH, non-condensing
- Physical: Compact silicon micromachined structure, withstands proof and burst pressures up to 200-300 inH2O
- Connections: Standard pinout with Vs, Gnd, Vout, with soldering temperature max 270°C
Buy the Reliable Pressure Sensors for Industrial Applications
Get the 10 inch Amplified Low Pressure Sensor online today and experience enhanced accuracy and stability for your industrial, environmental, or medical systems. Designed for non-corrosive gases and dry air, this sensor provides a reliable 4V ratiometric output with excellent temperature compensation. Its robust silicon structure offers high linearity and reduced offset errors, making it suitable for demanding applications. Purchase now to ensure your systems operate with precision, durability, and consistent performance under wide environmental conditions.
Order your brand's 10 inch Amplified Low Pressure Sensor today and ensure your projects benefit from dependable, precise pressure measurements in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 10INCHD4V?
You can click on the BUY or RFQ button to purchase 10INCHD4V from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 10INCHD4V?
You can download the 10INCHD4V datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 10INCHD4V?
AMPHENOL ALL SENSORS
