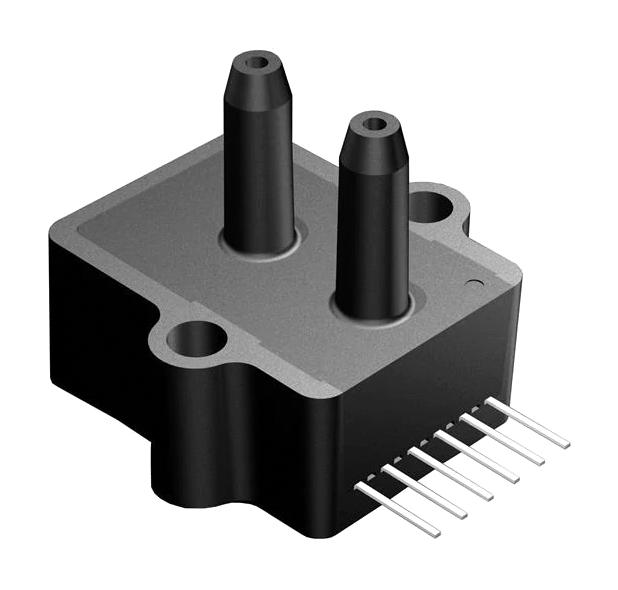

AMPHENOL ALL SENSORS 150PSIDHGRADEMV Millivolt Output Pressure Sensor
The high-accuracy millivoltmeter output pressure sensor is designed for precise measurement of pressure ranges from 0 to 4 inches H2O up to 100 PSI. It features temperature compensation, calibrated zero and span outputs, and excellent output offset characteristics with a silicon micromachined stress concentration structure for linearity. Suitable for HVAC, medical instrumentation, and environmental controls, it operates with non-corrosive, dry gases, providing stable readings over wide temperature ranges and is powered from any DC supply up to 16 V, ensuring reliable, high-accuracy pressure measurement.
AMPHENOL ALL SENSORS 150PSIDHGRADEMV Millivolt Output Pressure Sensor Specifications:
- Pressure Range: 0 to 4 inches H2O to 0 to 100 PSI
- Output: Calibrated millivolt, nominal span 20-100 mV depending on range
- Power Supply: Up to 16 V DC, typical 12 V
- Supply Resistance: 20 k ohm
- Output Resistance: 3.0 k ohm
- Input Resistance: 20 k ohm
- Temperature Range: Operating -25°C to 85°C, Storage -40°C to 125°C
- Pressure Accuracy: 0.5 % linearity, high accuracy version
- Physical Dimensions: Diameter approximately 0.107 inches, length around 0.174 inches
- Mounting: Compact, silicon micromachined structure for linear output
- Material: Silicon micromachined structure, compatible with non-corrosive gases
- Certifications: Not specified, suitable for industrial and medical environments
- Environment: Humidity up to 95% RH (non-condensing)
Buy the Buy Sensors High-Accuracy Millivolt Pressure Part Number 150PSIDHGRADEMV Online
Enhance your measurement capabilities by purchasing the millivolt output pressure sensor online. Designed for accuracy and stability across wide pressure ranges from 0 to 4 inches H2O up to 100 PSI, it offers temperature compensation, calibrated zero and span, and excellent linearity. Suitable for HVAC, medical instrumentations, and environmental controls, this sensor operates reliably with dry gases, ensuring high performance for demanding applications. Convenient online ordering guarantees fast delivery and technical support for your projects.
Order your Sensors Series150PSIDHGRADEMV high-accuracy millivolt pressure sensor today and ensure precise, stable pressure measurements for your industrial or medical applications.
