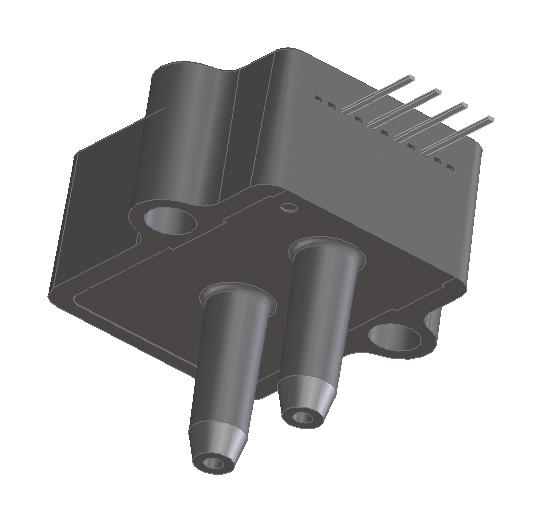

AMPHENOL ALL SENSORS 15PSIA4V Medium Pressure Sensor
The Amplified line of medium pressure sensors, like the 15 PSI-A-4V, utilizes proprietary package technology to minimize errors and provide superior output characteristics. The sensor housing is designed to reduce parasitic stress and strain, while the silicon, micromachined structure ensures a linear output. These calibrated and temperature-compensated sensors are ideal for applications in medical instrumentation, environmental monitoring, and HVAC systems. The output is ratiometric to the supply voltage, ensuring consistent performance.
AMPHENOL ALL SENSORS 15PSIA4V Medium Pressure Sensor Specifications:
- Pressure Ranges: 0 to ±0.3 to 0 to 150 psi
- Output: Ratiometric 4V
- Temperature Compensation: Yes
- Supply Voltage: +4.5 to +5.5 Vdc
- Common-mode pressure: -10 to +10 psig
- Lead Temperature: 250°C (soldering 2-4 sec.)
- Operating Temperature: 5 to 50°C
- Storage Temperature: -40 to 125°C
- Humidity Limits: 0 to 95% RH (non condensing)
- Operating Pressure: 0 - 15 PSIA
- Nominal Span: 4 V
- Proof Pressure: 45 PSI
- Burst Pressure: 60 PSI
- Output Span (FSS): 3.90 - 4.10 V
- Offset Voltage @ zero absolute pressure: 0.15 - 0.35 V
- Offset Temperature Shift: ±20.0 mV
- Linearity, hysteresis error: ±0.5 %FSS
- Span Temperature Shift: ±1.0 %FSS
