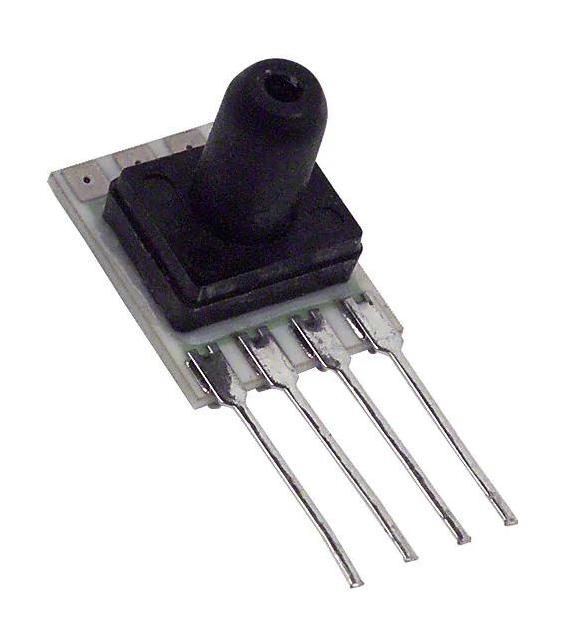

AMPHENOL ALL SENSORS 15PSIDHGRADEMINI Miniature Pressure Sensor
The AMPHENOL ALL SENSORS Miniature series pressure sensors are engineered for reduced size while maintaining high performance. These sensors feature a calibrated millivolt output with significantly reduced output offset errors due to temperature changes, warm-up stability, long-term stability, and position sensitivity. The silicon, micromachined stress concentration enhanced structure ensures a very linear output to measured pressure. Designed for use with non-corrosive, non-ionic working fluids like air and dry gases, the H-GRADE version offers high accuracy and stability over a wide temperature range. The output is ratiometric to the supply voltage, allowing operation from various D.C. power sources. Ideal for medical instrumentation, environmental controls, and HVAC systems.
AMPHENOL ALL SENSORS 15PSIDHGRADEMINI Miniature Pressure Sensor Specifications:
- Pressure Ranges: 0 to 4” H2O to 0 to 100 PSI
- Linearity: 0.5%
- Temperature Compensated: Yes
- Output: Calibrated millivolt
- Applications: Medical Instrumentation, Environmental Controls, HVAC
- Supply Voltage: 16 Vdc
- Operating Temperature: -25 to 85°C
- Storage Temperature: -40 to 125°C
- Humidity Limits: 0 to 95% RH (non-condensing)
- Proof Pressure: 3-60 PSI (depending on model)
- Output Span (4 INCH-G-HGRADE-MINI): 25 mV
- Offset Voltage @ zero differential pressure (4 INCH-G-HGRADE-MINI): ±0.5 mV
- Offset Temperature Shift (0°C-50°C) (4 INCH-G-HGRADE-MINI): ±0.5 mV
- Linearity, hysteresis error (4 INCH-G-HGRADE-MINI): 0.25-0.5%
- Span Shift (0°C-50°C) (4 INCH-G-HGRADE-MINI): ±1%
- Output Resistance: 3.0 k ohm
- Input Resistance: 5.0 k ohm
