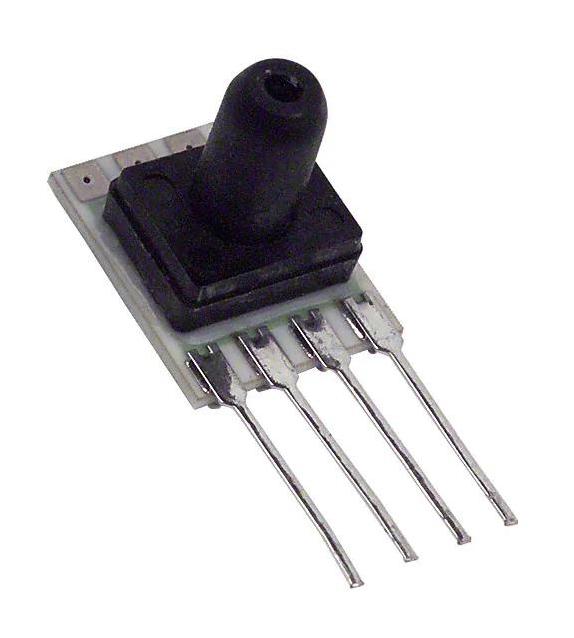

AMPHENOL ALL SENSORS 15PSIGFCGRADEMINI Miniature Pressure Sensor
The AMPHENOL ALL SENSORS Miniature series pressure sensors are designed to minimize sensor size while maintaining high performance. This model features a calibrated millivolt output with significantly reduced output offset errors due to temperature changes, warm-up stability, long-term stability, and position sensitivity. The sensor's silicon, micromachined, stress concentration enhanced structure provides a very linear output to measured pressure. Suitable for medical instrumentation, environmental controls, and HVAC systems, this C-GRADE version offers a cost-effective solution for accurate and stable pressure measurement across a wide temperature range. The output is ratiometric to the supply voltage, allowing for flexible power supply options.
AMPHENOL ALL SENSORS 15PSIGFCGRADEMINI Miniature Pressure Sensor Specifications:
- Operating Pressure: 0 to 15 PSIG
- Pressure Ranges: 0 to 4” H2O to 0 to 100 PSI
- Supply Voltage: 16 Vdc
- Common-mode pressure: 50 psig
- Lead Temperature: 250°C
- Temperature Ranges Compensated: 0 to 70°C
- Operating Temperature: -25 to 85°C
- Storage Temperature: -40 to 125°C
- Humidity Limits: 0 to 95% RH (non condensing)
- Output Span: 18-27 mV
- Offset Voltage: ±1.5 mV
- Offset Temperature Shift: ±1.5 mV
- Linearity Error: 0.5-1.0 %fs
- Span Shift: ±2 %fs
- Input Resistance: 5.0 k ohm
- Output Resistance: 3.0 k ohm
