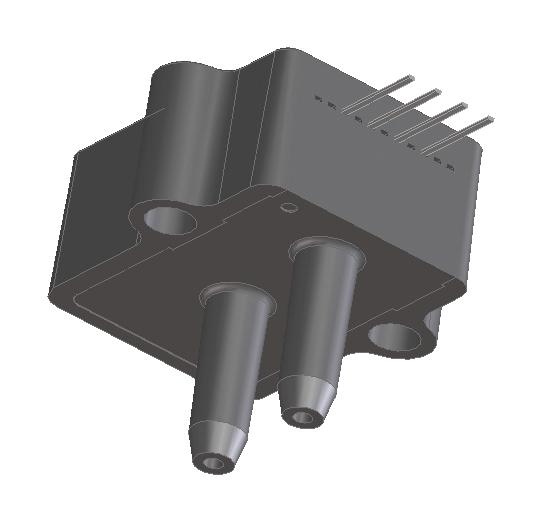

AMPHENOL ALL SENSORS 1INCHD4V Low Pressure Sensor
The ADCA series of amplified low pressure sensors utilize proprietary technology to minimize output offset errors and enhance stability. Designed for accurate, linear pressure measurement, these sensors feature a ratiometric 4V amplified output, temperature compensation, and are ideal for measuring non-corrosive dry gases and air. Available in various pressure ranges from 0.25 to 60 inches of water column, they operate across a wide temperature spectrum, including industrial and military standards, with robust calibration and long-term stability suitable for medical, environmental, and HVAC applications.
AMPHENOL ALL SENSORS 1INCHD4V Low Pressure Sensor Specifications:
- Pressure Ranges: 0.25 to 60 inches of water (inH2O)
- Output: Ratiometric 4V amplified
- Supply Voltage: 4.5 to 5.5 V
- Temperature Ranges: Standard 5°C to 50°C, Industrial -25°C to 85°C, Military -40°C to 125°C
- Lead Temperature: Max 270°C (soldering 2-4 sec.)
- Environmental: Humidity 0-95% RH non-condensing
- Proof Pressure: Up to 200 inH2O (50 kPa), Burst Pressure: Up to 300 inH2O (75 kPa)
- Linearity Error: ±0.05%FSS, Drift: Long-term ±20 mV/year
- Response Time: Less than 500 microseconds to 90% pressure application
- Available in differential and gage pressure types, with calibrated zero and span
Buy the Buy ADCA Amplified Low Pressure Sensor Part Number 1INCHD4V Online
Order the ADCA series low pressure sensor 1INCHD4V online today to ensure accurate, stable measurements for your medical, environmental, or HVAC projects. This sensor offers a ratiometric 4V amplified output and wide pressure ranges from 0.25 to 60 inches of water, along with robust temperature compensation and calibration. Its quick response time under 500 microseconds makes it ideal for dynamic applications. Designed to work with non-corrosive gases, it's perfect for demanding industrial, military, or laboratory environments, providing long-term stability and high reliability.
Get ADCA low pressure sensor 1INCHD4V today—built for precision, stability, and long-lasting durability in HVAC, medical, or environmental applications.
