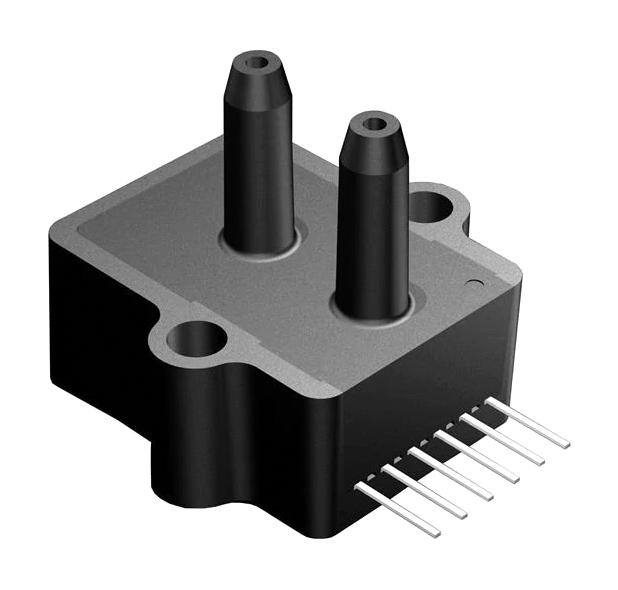

AMPHENOL ALL SENSORS 1INCHDMV Low Pressure Sensor
The 1 Inch Low Pressure Sensor measures pressures from 0 to 1 inch H2O with high accuracy and stability. It features a millivolt output calibrated for superior offset reduction, temperature compensation, and linear response, suitable for medical, environmental, and HVAC applications. Constructed with silicon micromachined structures, it offers excellent linearity, low hysteresis, and minimal temperature drift. Compatible with non-corrosive gases, it operates from 0°C to 50°C, with a max supply voltage of 16V, ensuring reliable performance in sensitive instrumentation and environmental controls.
AMPHENOL ALL SENSORS 1INCHDMV Low Pressure Sensor Specifications:
- Measurement Range: 0-1 inch H2O
- Output Span: 10 mV (nominal), 9-11 mV (range)
- Proof Pressure: 100 inch H2O
- Burst Pressure: 200 inch H2O
- Temperature Range: 0°C to 50°C
- Supply Voltage: Up to 16 VDC
- Offset Temperature Shift: ±250 μV (0°C-50°C)
- Linearity & Hysteresis: 0.05 to 0.25 % full scale
- Sensitivity to position: ±5 μV
- Response Time: < 100 μsec
- Pressure Type: Differential pressure
- Compatible with dry gases, non-corrosive
- Operating ambient temperature: -25°C to 85°C
- Storage temperature: -40°C to 125°C
- Humidity Limits: 0-95% RH
- Lead Soldering Temp: Max 270°C for 2-4 seconds
Buy the Oasis 1INCHDMV – Reliable Pressure Sensor for Industrial Applications
Order the Oasis 1INCHDMV low pressure sensor online today to ensure accurate, stable, and reliable pressure measurements in medical, environmental, HVAC, and industrial applications. This sensor offers high precision with a calibrated millivolt output, temperature compensation, and excellent linearity, making it ideal for sensitive instrumentation and control systems. Its robust design withstands harsh environments with operating temperatures from -25°C to 85°C and a maximum supply voltage of 16V, delivering consistent performance and easy integration into your projects. Purchase now for reliable, professional-grade pressure sensing.
Get Oasis 1INCHDMV today—built for precision and long-lasting durability in pressure measurement.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 1INCHDMV?
You can click on the BUY or RFQ button to purchase 1INCHDMV from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 1INCHDMV?
You can download the 1INCHDMV datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 1INCHDMV?
AMPHENOL ALL SENSORS
