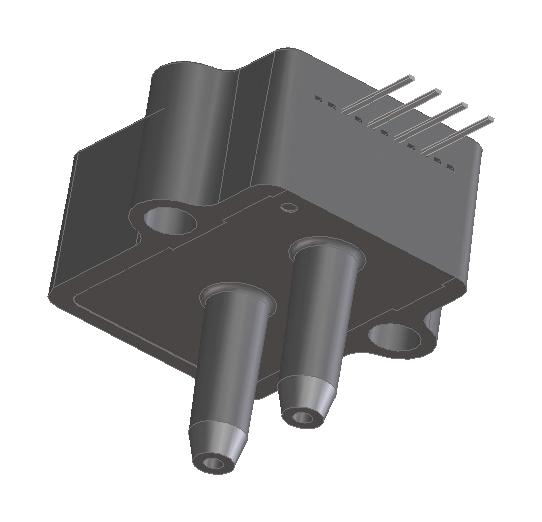

AMPHENOL ALL SENSORS 1PSID4V Amplified Middle Pressure Sensor
The 1PSID4V pressure sensor is a high-accuracy, amplified middle pressure sensor designed for medical, environmental, and HVAC instrumentation. It offers a ratiometric 4V output, temperature compensation, and calibrated zero and span, ensuring stable readings over temperature variations. The sensor's silicon micromachined structure provides a highly linear output for pressures up to 1 PSI, with proven reliability and minimal error. It operates on 4.5 to 5.5V supply, making it ideal for non-corrosive gases like air and dry gases, with a compact design for integration into various systems.
AMPHENOL ALL SENSORS 1PSID4V Amplified Middle Pressure Sensor Specifications:
- Supply Voltage: 4.5 to 5.5V
- Output Voltage: 4V ratiometric
- Pressure Range: 0-1 PSI
- Burst Pressure: 10 PSI
- Proof Pressure: 5 PSI
- Temperature Range: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Humidity Limits: 0 to 95% RH (non-condensing)
- Material: Silicon micromachined structure
- Calibrated Zero and Span
- Temperature Compensation: ASIC based
- Error: Linearity & hysteresis within 405 FSS
- Port Size: 0.1790° x 0.189"
- Connections: 4-pin configuration
- Applications: Medical, Environmental, HVAC instrumentation
Buy the Buy All Sensors 1PSID4V Part Number 1PSID4V Online
Purchase the All Sensors 1PSID4V pressure sensor online today to ensure accurate, stable output in medical, environmental, or HVAC applications. This model provides a 4V ratiometric output, calibrated zero and span, and temperature compensation for consistent performance across a wide temperature range. Its silicon micromachined structure offers high linearity and minimal errors, ideal for non-corrosive gases like air and dry gases. Easily integrated into your system, this sensor guarantees reliable operation with durable construction and proven specifications. Order now for fast delivery and seamless setup.
Buy All Sensors 1PSID4V now and experience unmatched reliability and precision for your pressure measurement needs in medical, HVAC, or environmental systems.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 1PSID4V?
You can click on the BUY or RFQ button to purchase 1PSID4V from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 1PSID4V?
You can download the 1PSID4V datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 1PSID4V?
AMPHENOL ALL SENSORS
