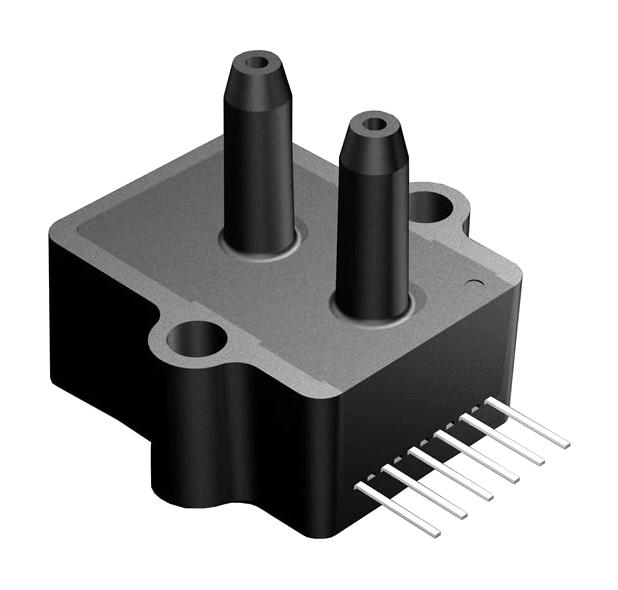

AMPHENOL ALL SENSORS 1PSIDPRIMEMV Millivolt Pressure Sensor
The millivolt output pressure sensor provides high-accuracy, calibrated, and temperature-compensated measurements for non-corrosive gases like air and dry gases. Suitable for medical instrumentation, environmental control, and HVAC systems, it features a proprietary packaging technology that minimizes output offset errors and delivers a linear signal across a wide pressure range from 0 to 150 PSI. Operating at 12V excitation, this sensor exhibits excellent stability, fast pressure response within 100 microseconds, and diverse pressure ranges with proof and burst pressures for reliable performance in industrial and environmental applications.
AMPHENOL ALL SENSORS 1PSIDPRIMEMV Millivolt Pressure Sensor Specifications:
- Supply Voltage: 16 V
- Output Resistance: 3.0 kohm
- Input Resistance: 5.0 kohm
- Pressure Ranges: 0-1 PSI to 0-150 PSI
- Nominal Span: 90 mV for 15, 30, and 150 PSI ranges, 18 mV for 1 PSI, 100 mV for 100 PSI
- Maximum Proof Pressure: 5 to 200 PSI depending on range
- Maximum Burst Pressure: 15 to 250 PSI depending on range
- Temperature Range: -25°C to +85°C (operating), -40°C to +125°C (storage)
- Pressure Response Time: Less than 100 microseconds
- Dimensions: Compact design suitable for various mounting configurations
- Environmental: 0-95% RH, non-condensing
- Certifications: Designed to meet industrial standards
Buy the Prime Grade 1PSIDPRIMEMV – Reliable Millivolt Pressure Sensors for Industrial Applications
Experience unmatched precision with the Prime Grade millivolt pressure sensor, ideal for industrial, medical, and environmental applications. This sensor ensures high accuracy, temperature compensation, and fast response times, making it perfect for measuring air, dry gases, and other non-corrosive fluids. Its robust construction and reliability provide stable outputs over wide pressure ranges. Easily integrated into your systems, it delivers consistent performance with proven certifications, ensuring your applications operate smoothly and accurately. Upgrade to this high-performance pressure sensor today for superior results.
Buy Prime Grade 1PSIDPRIMEMV now and experience unmatched accuracy, fast response time, and stable pressure measurements ideal for medical, HVAC, and environmental systems.
