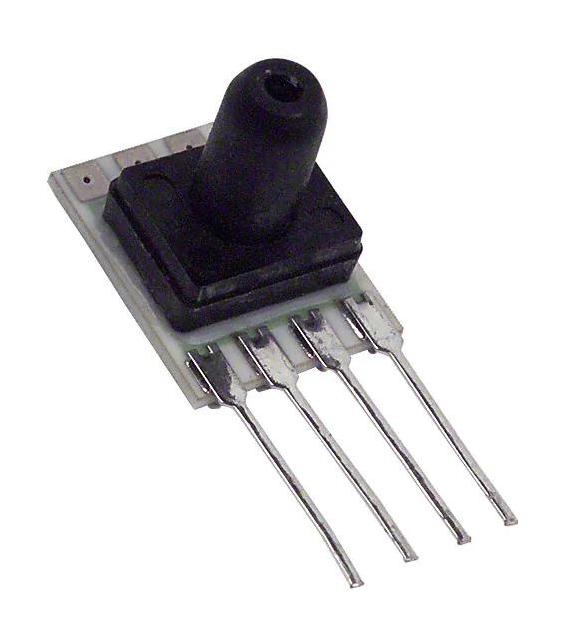

AMPHENOL ALL SENSORS 1PSIGFHGRADEMINI Miniature Pressure Sensor
Miniature pressure sensors designed for accurate, high-performance measurement of pressures from 0 to 100 PSI. Features include temperature compensation, calibrated zero and span, and a linear output with high accuracy. Suitable for medical instrumentation, environmental controls, and HVAC applications using non-corrosive gases. These sensors utilize silicon micromachined stress-concentrated structures to ensure stability amidst temperature changes and long-term operation. Available with single or dual pressure ports, they operate reliably at voltages up to 16 V and temperatures from -25°C to 85°C, making them ideal for precise pressure monitoring in compact spaces.
AMPHENOL ALL SENSORS 1PSIGFHGRADEMINI Miniature Pressure Sensor Specifications:
- Pressure Range: 0-100 PSI
- Output Span: 24-26 mV (for 4 inch model), 17.82-18.18 mV (for 1 PSI), 89.1-90.9 mV (for 15 PSI), 99-101 mV (for 100 PSI)
- Supply Voltage: Up to 16 V DC
- Temperature Range: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Humidity Limits: 0-95% RH (non-condensing)
- Pressure Port: Single or Dual configurations
- Proof Pressure: 3 PSI to 150 PSI depending on model
- Response Time: Less than 100 microseconds to 90% of applied pressure
- Physical Dimensions: Compact miniature size suitable for space-constrained environments
- Output Type: Millivolt, ratio-metric to supply voltage
- Certifications: Approvals vary by model, suitable for industrial and medical use
Buy the Jadoo Series Miniature Pressure Sensors: 1PSIGFHGRADEMINI
Discover the high-precision miniature pressure sensors ideal for medical instrumentation, environmental controls, and HVAC systems. With calibrated zero and span, temperature compensation, and a linear millivolt output, these sensors deliver accurate pressure readings over a broad temperature range. Their compact design allows easy integration into space-constrained environments while maintaining stability and high accuracy. Perfect for non-corrosive gases, they feature quick response times and robust construction, ensuring long-term reliability and consistent performance. Order online today for reliable pressure measurement solutions.
Order your Jadoo Series 1PSIGFHGRADEMINI miniature pressure sensor today and ensure precise, reliable pressure measurement for your medical, HVAC, or environmental control systems.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 1PSIGFHGRADEMINI?
You can click on the BUY or RFQ button to purchase 1PSIGFHGRADEMINI from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 1PSIGFHGRADEMINI?
You can download the 1PSIGFHGRADEMINI datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 1PSIGFHGRADEMINI?
AMPHENOL ALL SENSORS
