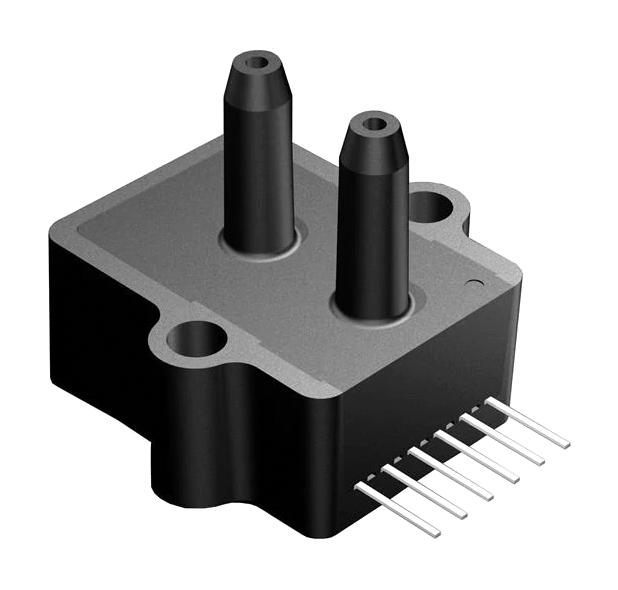

AMPHENOL ALL SENSORS 20INCHDMV Low-Pressure Millivolt Sensor
The 20-inch low-pressure millivolt output sensor offers precise measurement of pressures from 0 to 20 inches of water, calibrated for stability and accuracy over a wide temperature range. Utilizing proprietary silicon micromachined stress-concentration technology, it minimizes offset and temperature-induced errors, ensuring reliable performance in environmental control, HVAC, and medical instrumentation applications. Equipped with calibrated zero and span, this sensor provides a ratiometric output compatible with supply voltages up to 16 V, making it ideal for non-corrosive gases with minimal hysteresis and high linearity. Its robust design ensures durability under operating conditions of -25°C to +85°C.
AMPHENOL ALL SENSORS 20INCHDMV Low-Pressure Millivolt Sensor Specifications:
- Operating Pressure Range: 0-20 inches of water
- Output Span: 19.0-21.0 mV
- Offset Temperature Shift (0°C-70°C): ±150 uV
- Offset Position Sensitivity (1g): ±45 uV
- Linearity and Hysteresis Error: 0.05-0.25 %
- Supply Voltage: Up to 16 V
- Operating Temperature Range: -25°C to +85°C
- Storage Temperature Range: -40°C to +125°C
- Response Time: Less than 100 microseconds
- Resistances: Input 4.5 kohm, Output 1.5 kohm
- Lead Temperature (soldering): Max 270°C
- Humidity Limits: 0-95% RH (non-condensing)
Buy the Sensors Series 20 Inch Low-Pressure Millivolt: 20INCHDMV
Purchase the 20-inch low-pressure millivolt sensor online today for precise, stable pressure measurements suitable for HVAC, medical instrumentation, and environmental control systems. Featuring a calibrated zero and span, low offset error, and fast response time, this sensor provides dependable performance across a wide temperature range. Its compact design and compatibility with supply voltages up to 16 V make it easy to integrate into various applications. Ensure your projects benefit from accurate, durable, and high-quality pressure sensing technology available now for online purchase.
Order your Sensors Series 20 Inch Low-Pressure Millivolt sensor today and enhance your environmental monitoring systems with highly accurate pressure measurement capabilities.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 20INCHDMV?
You can click on the BUY or RFQ button to purchase 20INCHDMV from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 20INCHDMV?
You can download the 20INCHDMV datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 20INCHDMV?
AMPHENOL ALL SENSORS
