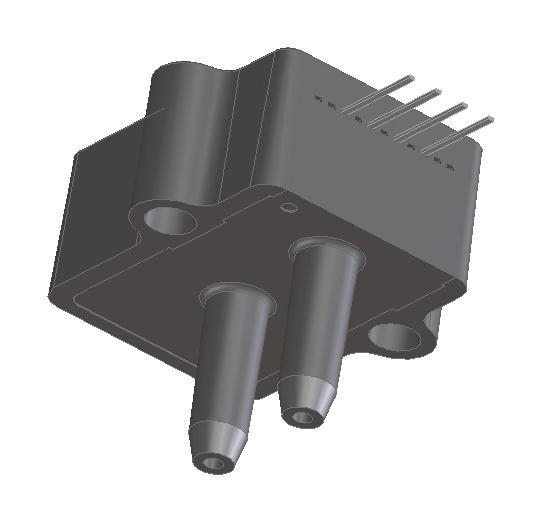

AMPHENOL ALL SENSORS 25INCHD4V Low Pressure Sensor
The ADCA series amplified low pressure sensors are designed for precise measurement of low pressure ranges from 0.25 to 60 inches of water. Utilizing proprietary technology, these sensors feature a ratiometric 4-volt amplified output with superior offset error reduction, temperature compensation, and high linearity. Suitable for non-corrosive, dry gases and air, they are used in medical instrumentation, environmental controls, HVAC, and industrial applications. The sensors operate over a wide temperature range and provide stable, accurate pressure readings with minimal drift, making them ideal for demanding environments.
AMPHENOL ALL SENSORS 25INCHD4V Low Pressure Sensor Specifications:
- Pressure Range: 0.25 to 60 inches of water (inH2O)
- Output: Ratiometric, 4-volt amplified
- Supply Voltage: +4.5 to +5.5 Vdc
- Temperature Range: Standard 5°C to 50°C, Industrial -25°C to 85°C, Military -40°C to 125°C
- Pressure Type: Differential and Gage models available
- Alarm Output: Zero and span calibrated
- Response Time: Less than 500 microseconds to 90% of pressure change
- Pin Configuration: Pin 1: Vs, Pin 2: Gnd, Pin 3: Vout, Pin 4: Do Not Connect
- Humidity Limits: 0 to 95% RH (non-condensing)
- Designed for non-corrosive gases, provides high stability, and reduces offset errors due to temperature changes
Buy the Buy Sensors Amplified Low Pressure Part Number 25INCHD4V Online
Purchase the ADCA series low pressure sensor 25INCHD4V online and experience precise measurement, innovative temperature compensation, and reliable long-term stability. Designed for non-corrosive gases, these sensors are perfect for medical, environmental, HVAC, and industrial uses. With a ratiometric 4V output, wide temperature ranges, and fast response times, this sensor ensures accurate pressure readings in various demanding environments. Buy online today for fast delivery and technical support to enhance your measurement systems with this high-performance pressure sensor.
Get ADCA series low pressure sensor 25INCHD4V today—engineered for high accuracy, stability, and reliable performance in demanding applications.
