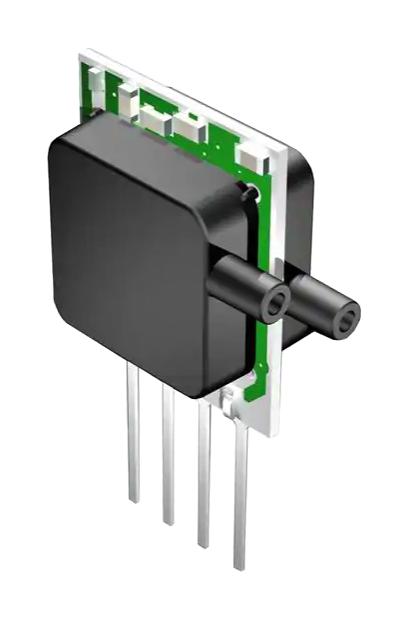

AMPHENOL ALL SENSORS 2INCHD1DIPMVMINI Millivolt Output Pressure Sensor
The AMPHENOL ALL SENSORS 2 INCH-D1DIP-MV-MINI is a miniature low-pressure sensor designed for precision measurement in various industrial applications. It leverages a proprietary technology to significantly reduce output offset and common-mode errors, resulting in a highly stable and accurate millivolt output. The sensor's silicon, micromachined structure provides a linear output response to pressure changes, making it suitable for medical instrumentation, environmental controls, and HVAC systems. It operates from a DC supply voltage up to +16V and is intended for use with non-corrosive, non-ionic working fluids like air and dry gases.
AMPHENOL ALL SENSORS 2INCHD1DIPMVMINI Millivolt Output Pressure Sensor Specifications:
- Pressure Ranges: 0 to 1” H2O to 0 to 30” H2O
- Supply Voltage: 16 Vdc
- Common-mode pressure: 10 psig
- Lead Temperature: 250°C
- Temperature Ranges Compensated: 0 to 50(70)° C
- Operating Temperature: -25 to 85° C
- Storage Temperature: -40 to 125° C
- Humidity Limits: 0 to 95% RH (non condensing)
- Output Span @ 1 “H2O: 8.0 - 12.0 mV
- Offset Voltage @ zero differential pressure: ±500 mV
- Offset Temperature Shift (0°C-50°C): ±250 uV
- Offset Warm-up Shift: ±100 uV
- Offset Position Sensitivity (1g): ±50 uV
- Offset Long Term Drift (one year): ±200 uV
- Linearity, hysteresis error: 0.05 - 0.25 %fs
- Span Shift (0°C-50°C): ±300 uV
- Operating Range, differential pressure: 1.0 - 2.0 “H2O
- Input Resistance: 4.5 k ohm
- Output Resistance: 1.5 k ohm
Buy the 2 INCH-D1DIP-MV-MINI AMPHENOL ALL SENSORS Millivolt Output Pressure Sensor | myMectronic
Securely purchase the AMPHENOL ALL SENSORS 2 INCH-D1DIP-MV-MINI online for reliable pressure sensing in your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 2INCHD1DIPMVMINI?
You can click on the BUY or RFQ button to purchase 2INCHD1DIPMVMINI from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 2INCHD1DIPMVMINI?
You can download the 2INCHD1DIPMVMINI datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 2INCHD1DIPMVMINI?
AMPHENOL ALL SENSORS
