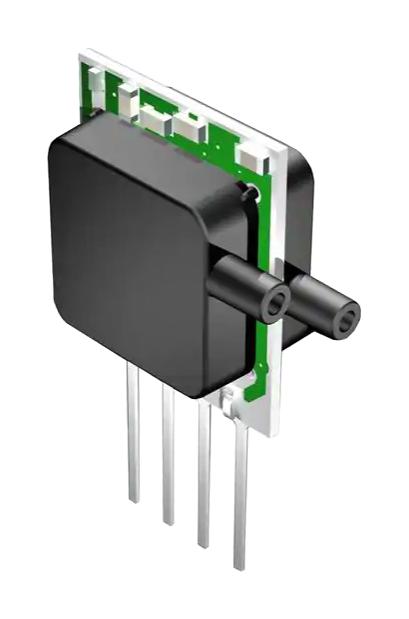

AMPHENOL ALL SENSORS 30INCHD14VMINI Miniature Pressure Sensor
The 30INCHD14VMINI miniature amplified low-pressure sensor provides precise measurements for pressure ranges from +30 inH2O with a 4V output. Designed for accurate, stable performance over a wide temperature range, it features temperature compensation and calibrated zero and span. Suitable for applications in environmental controls, HVAC, and medical instrumentation, this high-quality sensor has a proven linear output, minimal hysteresis and offset errors, and can operate from 4.5 to 5.5V. Its compact size makes it ideal for space-constrained systems requiring reliable pressure monitoring.
AMPHENOL ALL SENSORS 30INCHD14VMINI Miniature Pressure Sensor Specifications:
- Measurement Range: +30 inH2O
- Output Voltage Span: 3.90 - 4.10 V
- Supply Voltage: 4.5 - 5.5 V DC
- Temperature Range: -25°C to 85°C operating, -40°C to 125°C storage
- Proof Pressure: 800 inH2O
- Burst Pressure: 1200 inH2O
- Total Hysteresis and Linearity: 0.05 - 0.25 %FSS
- Offset Temperature Shift: up to 420 mV
- Offset Position Sensitivity: ±5 mV
- Response Time: less than 500 microseconds
- Enclosure: Compact and corrosion-resistant
- Humidity Limits: 0-95% RH, non-condensing
Buy the All Sensors Series Miniature Amplified Pressure Sensor: 30INCHD14VMINI
Enhance your projects with the compact and highly accurate pressure sensor designed for space-constrained environments. The 30INCHD14VMINI features a calibrated 4V amplified output, wide temperature range operation, and excellent linearity for dependable pressure monitoring. Ideal for HVAC, environmental controls, and medical instrumentation, it delivers quick response times, minimal offsets, and stable performance over time. Buy online now to incorporate this reliable sensor into your systems and ensure precise pressure readings for critical applications.
Order your All Sensors Series Miniature Amplified Pressure Sensor 30INCHD14VMINI today and ensure your applications benefit from reliable, precise pressure measurement with space-saving design.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 30INCHD14VMINI?
You can click on the BUY or RFQ button to purchase 30INCHD14VMINI from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 30INCHD14VMINI?
You can download the 30INCHD14VMINI datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 30INCHD14VMINI?
AMPHENOL ALL SENSORS
