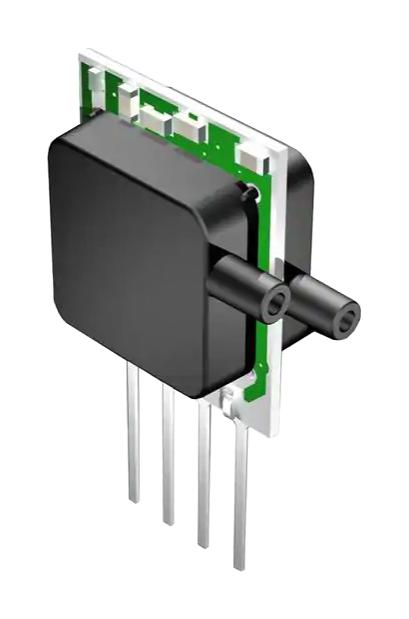

AMPHENOL ALL SENSORS 30INCHD1DIPMVMINI Low Pressure Sensor
This miniature low-pressure sensor measures differential pressures up to 30 inches of H2O, designed for medical, environmental, and HVAC applications. It features temperature compensation and calibrated zero and span for accuracy. The device’s compact design includes single or dual port configurations with various pressure ranges. It provides a ratiometric millivolt output, with stable, linear performance over wide temperature ranges. Suitable for non-corrosive gases, it operates from a 16 VDC supply, ensuring reliable measurement in demanding environments.
AMPHENOL ALL SENSORS 30INCHD1DIPMVMINI Low Pressure Sensor Specifications:
- Maximum operating pressure: 30“H2O
- Output span at 1“H2O: 80-120 mV, at 2“H2O: 9-11 mV, at 5“H2O: 19-21 mV, at 10“H2O: 19-21 mV, at 20“H2O: 19-21 mV, at 30“H2O: 19-21 mV
- Offset voltage at zero differential pressure: 80 mV (30“H2O range)
- Offset temperature shift: +150 to +250 uV (0°C-50°C/70°C)
- Offset warm-up shift: within the first hour of operation
- Output linearity/hysteresis: 0.05-0.25 % of full scale
- Supply Voltage: up to 16 VDC, 12 V typical
- Operating temperature: -25°C to 85°C, compensated range 0-70°C
- Storage temperature: -40°C to 125°C
- Environmental humidity: 0-95% RH (non-condensing)
- Physical dimensions vary by configuration, designed for minimal space
- Pressure ports: various options including same side or opposite side configurations
- Materials: compatible with dry air and gases, non-corrosive fluids
- Gasket and seal materials ensure leak-proof operation
Buy the Buy All Sensors Low Pressure Sensors Part Number 30INCHD1DIPMVMINI Online
Get your All Sensors Low Pressure Sensor part number 30INCHD1DIPMVMINI today. Designed for reliable differential pressure measurement up to 30 inches H2O, it offers excellent linearity, temperature compensation, and calibration. Perfect for HVAC, medical, and environmental applications, this compact device features various port configurations for versatile installation. With stable, ratiometric millivolt output and robust design, it ensures precision in challenging environments. Order now and upgrade your measurement systems with this high-quality pressure sensor.
Order your All Sensors Series30INCHD1DIPMVMINI today and ensure accurate low-pressure measurement for your HVAC and medical projects.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 30INCHD1DIPMVMINI?
You can click on the BUY or RFQ button to purchase 30INCHD1DIPMVMINI from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 30INCHD1DIPMVMINI?
You can download the 30INCHD1DIPMVMINI datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 30INCHD1DIPMVMINI?
AMPHENOL ALL SENSORS
