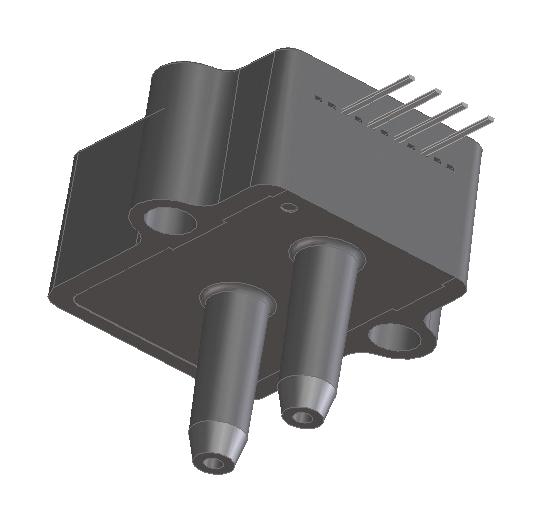

AMPHENOL ALL SENSORS 30INCHD4V Low Pressure Sensor
The 30-inch amplified low pressure sensor provides precise measurement of gauge pressure with a 4V ratiometric AC output, designed for accurate and stable monitoring in industrial and HVAC applications. It features a silicon micromachined structure for high linearity, temperature compensation, and robust performance over a wide temperature range from -40°C to 125°C. Suitable for non-corrosive gases, this sensor offers a measurement span of up to 30 inches of water column (in H2O) for differential and gage pressure types, with high reliability and calibration accuracy.
AMPHENOL ALL SENSORS 30INCHD4V Low Pressure Sensor Specifications:
- Pressure Range: Up to 30 inches of water column (in H2O), differential and gage types
- Output: Ratiometric 4V amplified signal
- Supply Voltage: +4.5 to +5.5 Vdc
- Temperature Range: -40°C to 125°C (industrial/military ranges available)
- Dimensions: Typical size consistent with pressure port options
- Materials: Silicon micromachined structure for high linearity
- Environmental Limits: Humidity 0-95% RH non-condensing, lead temperature max 270°C (soldering 2-4 sec.)
- Proof Pressure: Up to 500 in H2O with burst pressure 800 in H2O
- Response Time: Less than 500 microseconds to 90% pressure change
- Calibration: Zero and span calibrated, temperature compensated for accuracy
- Applications: Medical, environmental control, HVAC, industrial instrumentation
Buy the ADCA Series Pressure Sensor: 30-inch inH2O Pressure Range
Enhance your measurement systems with the reliable ADCA Series 30-inch low pressure sensor. Designed for precise gauge and differential pressure monitoring, it features a 4V amplified output, wide temperature range from -40°C to 125°C, and robust silicon micromachined sensors for high linearity. Suitable for use with air, dry gases, and non-corrosive fluids, this sensor offers calibration accuracy, quick response, and durability for demanding industrial or HVAC environments. Buy online today for dependable pressure measurement.
Order your ADCA Series 30-inch low pressure sensor today and ensure accurate, stable pressure monitoring for your industrial, HVAC, or environmental projects.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 30INCHD4V?
You can click on the BUY or RFQ button to purchase 30INCHD4V from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 30INCHD4V?
You can download the 30INCHD4V datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 30INCHD4V?
AMPHENOL ALL SENSORS
