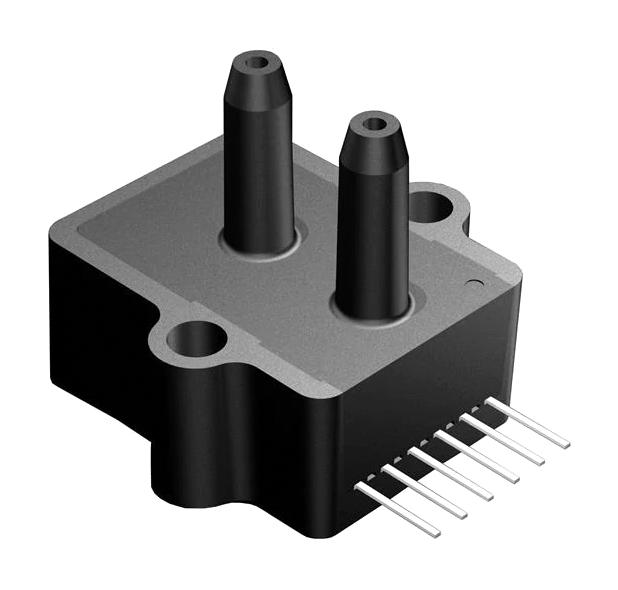

AMPHENOL ALL SENSORS 30INCHDMV Low Pressure Differential Sensor
The 30INCHDMV low-pressure sensor is designed for precise measurement of differential pressure up to 30 inches of water. It features a millivolt output with high linearity, stability, and temperature compensation, suitable for applications like environmental controls and medical instrumentation. The sensor includes a silicon micromachined structure, calibrated span, and offset to ensure accuracy across a wide temperature range. It operates from a supply voltage up to 16 V, with low offset errors and fast response time, ideal for non-corrosive gases and demanding industrial environments.
AMPHENOL ALL SENSORS 30INCHDMV Low Pressure Differential Sensor Specifications:
- Operating Pressure Range: 0-30 inches H2O
- Output: Millivolt calibrated with high linearity
- Supply Voltage: Up to 16 V DC
- Temperature Range: -25°C to 85°C (Operation), -40°C to 125°C (Storage)
- Offset Temperature Shift: ~250 µV (0°C-50°C), ~150 µV (0°C-70°C)
- Offset Position Sensitivity: ±50 µV to ±5 µV depending on range
- Linearity/Hysteresis Error: 0.05 to 0.25 ps
- Proof Pressure: 200 to 500 inches H2O, depending on part
- Burst Pressure: 200 to 500 inches H2O, depending on part
- Input Resistance: 4.5 kohm
- Output Resistance: 1.5 kohm
- Humidity Limits: 0-95% RH (Non-condensing)
- Response Time: <100 microseconds
Buy the All Sensors Series 30INCHDMV Low Pressure: 30INCHDMV
Experience reliable and accurate differential pressure measurement with our 30INCHDMV sensor. Perfect for environmental controls, medical instrumentation, and HVAC systems requiring precision up to 30 inches of water. Its advanced micromachined silicon structure offers high linearity and temperature stability, ensuring consistent performance across a wide temperature range. Easy to integrate with compatible systems, it provides fast response times and minimal offset errors, making it an ideal choice for demanding industrial applications. Purchase online today for quick delivery and superior performance.
Get All Sensors 30INCHDMV today—designed for precise and stable low-pressure measurement in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 30INCHDMV?
You can click on the BUY or RFQ button to purchase 30INCHDMV from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 30INCHDMV?
You can download the 30INCHDMV datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 30INCHDMV?
AMPHENOL ALL SENSORS
