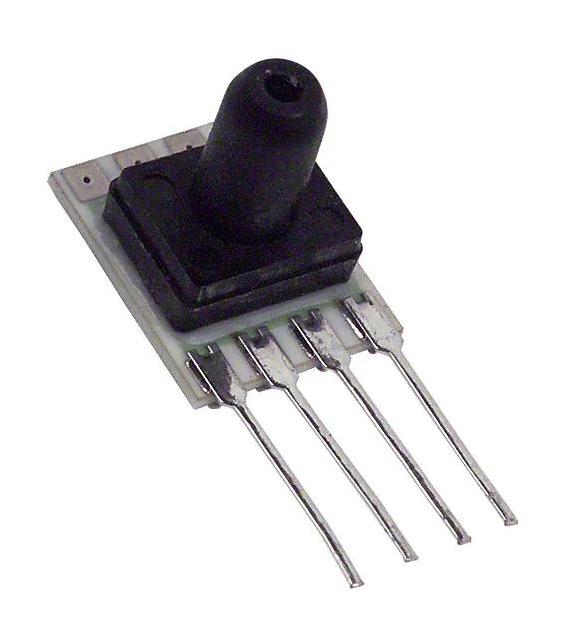

AMPHENOL ALL SENSORS 30PSIDCGRADEMINI Miniature Pressure Sensor
The AMPHENOL ALL SENSORS Miniature series pressure sensors are designed for applications requiring a small footprint without compromising performance. These sensors utilize a proprietary technology to reduce size while maintaining a high level of accuracy and stability. The calibrated millivolt output exhibits superior offset characteristics, minimizing errors due to temperature changes, warm-up time, and position sensitivity. The sensor's silicon, micromachined, stress concentration enhanced structure provides a very linear output to measured pressure, making it suitable for medical instrumentation, environmental controls, and HVAC systems. This C-GRADE version offers a cost-effective solution for a wide range of pressure sensing needs.
AMPHENOL ALL SENSORS 30PSIDCGRADEMINI Miniature Pressure Sensor Specifications:
- Operating Pressure Range: 0 to 30 PSIG
- Output Span: 85-95 mV
- Offset Voltage: ±1 mV
- Offset Temperature Shift: ±1 mV
- Linearity: 0.5-1.0 %FS
- Span Shift: ±2 %FS
- Supply Voltage: 16 Vdc
- Common-mode pressure: 50 psig
- Lead Temperature: 250°C
- Temperature Ranges Compensated: 0 to 70°C
- Operating Temperature: -25 to 85°C
- Storage Temperature: -40 to 125°C
- Humidity Limits: 0 to 95% RH (non-condensing)
