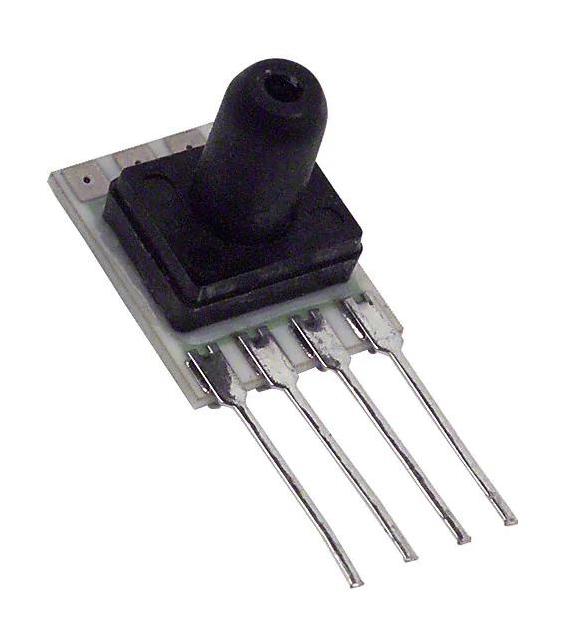

AMPHENOL ALL SENSORS 30PSIGFHGRADEMINI Miniature Pressure Sensor
The AMPHENOL ALL SENSORS Miniature series pressure sensors are designed for applications requiring a small footprint and high performance. Utilizing a proprietary technology, these sensors minimize size while maintaining accuracy and stability. They feature a calibrated millivolt output, reduced offset errors due to temperature changes, and a linear output thanks to a silicon, micromachined stress concentration enhanced structure. Suitable for non-corrosive, non-ionic working fluids like air and dry gases, the H-GRADE version provides enhanced accuracy. The output is ratiometric to the supply voltage, allowing for flexible power options. These sensors are commonly used in medical instrumentation, environmental controls, and HVAC systems.
AMPHENOL ALL SENSORS 30PSIGFHGRADEMINI Miniature Pressure Sensor Specifications:
- Pressure Ranges: 0 to 4” H2O to 0 to 100 PSI
- Linearity: 0.5%
- Temperature Compensated: Yes
- Output: Calibrated millivolt
- Applications: Medical Instrumentation, Environmental Controls, HVAC
- Supply Voltage: 16 Vdc
- Operating Temperature: -25 to 85°C
- Storage Temperature: -40 to 125°C
- Humidity Limits: 0 to 95% RH (non-condensing)
- Pressure Port: No Pressure Port, Single Pressure Port, Dual Pressure Port
- Proof Pressure: 3 PSI (Single/Dual), 10 PSI (Single), 20 PSI (Single), 60 PSI (Single/Dual), 150 PSI (Single)
- Output Span: 24-26 mV (4 INCH-G-HGRADE-MINI), 19-21 mV (10 INCH-G-HGRADE-MINI), 19-21 mV (0.3 PSI-G-HGRADE-MINI), 17.82-18.18 mV (1 PSI-G-HGRADE-MINI), 59.4-60.6 mV (5 PSI-G-HGRADE-MINI), 89.1-90.9 mV (15 PSI-G-HGRADE-MINI)
Buy the 30 PSI-GF-HGRADE-MINI AMPHENOL ALL SENSORS Miniature Pressure Sensor | myMectronic
Securely purchase the 30 PSI-GF-HGRADE-MINI Miniature Pressure Sensor online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 30PSIGFHGRADEMINI?
You can click on the BUY or RFQ button to purchase 30PSIGFHGRADEMINI from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 30PSIGFHGRADEMINI?
You can download the 30PSIGFHGRADEMINI datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 30PSIGFHGRADEMINI?
AMPHENOL ALL SENSORS
