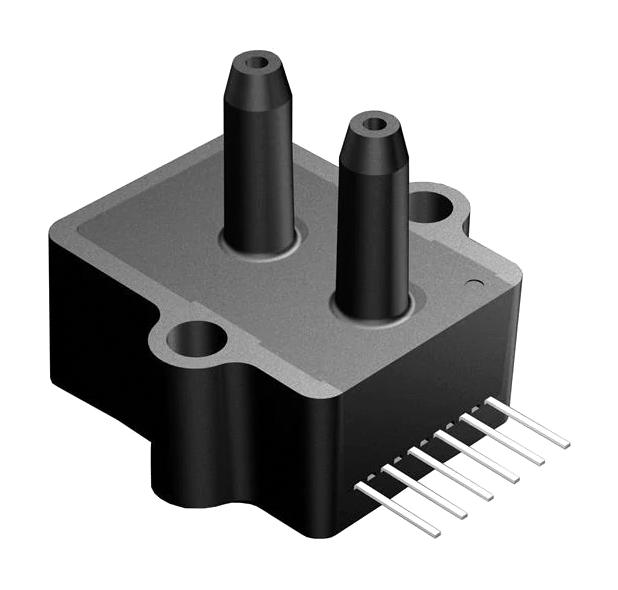

AMPHENOL ALL SENSORS 4INCHDHGRADEMV Millivolt Pressure Sensor
The Millivolt Output Pressure Sensors are high-accuracy, temperature-compensated devices designed for precise pressure measurements from 0 to 150 PSI, including absolute and differential ranges. Utilizing proprietary packaging technology and silicon micromachined structures, these sensors offer excellent linearity, stable offset, and a ratiometric output tied to supply voltage. They are suitable for applications requiring non-corrosive, dry gases, such as HVAC, medical instrumentation, and environmental controls. Their compact size and robust electrical characteristics ensure reliable performance in demanding environments, making them ideal for industrial and scientific use.
AMPHENOL ALL SENSORS 4INCHDHGRADEMV Millivolt Pressure Sensor Specifications:
- Supply Voltage: Up to 16 V DC
- Output Resistance: 3.0 kΩ
- Input Resistence: 20 kΩ
- Temperature Range: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Humidity Limits: 0-95% RH, non-condensing
- Physical Dimensions: 0.174 x 0.190 inches (4.42 x 4.83 mm), Pinout includes supply and output pins
- Pressure Ranges: 0-0.3 PSI to 0-150 PSI, with corresponding voltage spans from approx. 20 mV to 100 mV
- Maximum Burst Pressure: up to 250 PSI for higher ranges
- Linearity and hysteresis: ≤ 0.25% of full span
Buy the Buy Oasis Sensors Millivolt Pressure Part Number 4INCHDHGRADEMV Online
Enhance your pressure measurement capabilities with the high-accuracy Millivolt Pressure Sensor offering stable, temperature-compensated readings from 0 to 150 PSI. Designed for non-corrosive gases, these sensors deliver excellent linearity and offset stability. Suitable for HVAC, medical devices, and environmental controls, this sensor features a compact size, low power consumption, and robust electrical characteristics. Easy to integrate into your systems, they provide reliable, precise pressure data for professional engineering and scientific applications. Order online today and improve your project outcomes with trusted sensing technology.
Order your Oasis Sensors series 4INCHDHGRADEMV millivolt pressure sensor today and ensure precise, reliable pressure monitoring for your industrial and scientific projects.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 4INCHDHGRADEMV?
You can click on the BUY or RFQ button to purchase 4INCHDHGRADEMV from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 4INCHDHGRADEMV?
You can download the 4INCHDHGRADEMV datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 4INCHDHGRADEMV?
AMPHENOL ALL SENSORS
