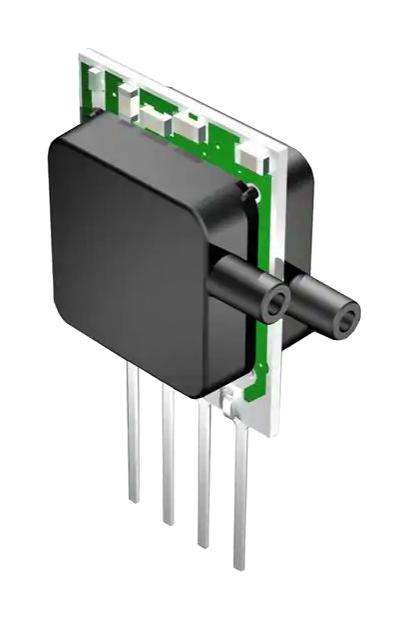

AMPHENOL ALL SENSORS 5INCHD14VMINI Low Pressure Sensor
The Miniature Amplified Low Pressure Sensor series offers high accuracy and stability for measuring low pressures from 0.5 to 30 inches of water column. These sensors feature a proprietary technology that minimizes output offset or common mode errors, providing a calibrated amplified output with superior offset characteristics. Designed for use with non-corrosive, dry gases like air, they are temperature compensated and calibrated for zero and span, making them ideal for medical instrumentation, environmental controls, and HVAC applications. They operate from 4.5 to 5.5 VDC, with a linear silicon micromachined structure ensuring reliable performance across a wide temperature range.
AMPHENOL ALL SENSORS 5INCHD14VMINI Low Pressure Sensor Specifications:
- Measurement Range: 0.5 inH2O to 30 inH2O
- Supply Voltage: 4.5 to 5.5 VDC
- Temperature Ranges: Compensated from 5°C to 50°C, operational from -25°C to 85°C
- Output Voltage Span: 1.90 V to 42.0 V depending on model
- Measurement Accuracy: Linearity within 0.25% FSS, offset temperature shift <120 mV, offset position sensitivity <5 mV
- Burst Pressure: Up to 800 inH2O for the highest range models
- Proof Pressure: Varies from 100 inH2O to 500 inH2O depending on range
- Encapsulation: Sealed for non-corrosive gases, silicon micromachined structure
- Connection: Pressure ports compatible with standard fittings, small form factor for miniature applications
- Durability: Designed for long-term stability and minimal drift over temperature and time
Buy the Buy All Sensors Miniature Amplified Low Pressure Sensor Part Number 5INCHD14VMINI Online
Purchase the All Sensors 5INCHD14VMINI low pressure sensor online today. This miniature, highly accurate, and temperature compensated device is perfect for HVAC, medical instrumentation, and environmental controls. With a wide measurement range up to 30 inches of water column, it offers calibrated, amplified output with superior offset stability. Operating from 4.5 to 5.5 volts, it ensures reliable, long-term performance across broad temperature ranges. Upgrade your project with this durable, precise pressure sensor for consistent results and easy online ordering.
Order your All Sensors Series 5INCHD14VMINI low pressure sensor today and experience dependable accuracy for medical, HVAC, and environmental projects.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 5INCHD14VMINI?
You can click on the BUY or RFQ button to purchase 5INCHD14VMINI from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 5INCHD14VMINI?
You can download the 5INCHD14VMINI datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 5INCHD14VMINI?
AMPHENOL ALL SENSORS
