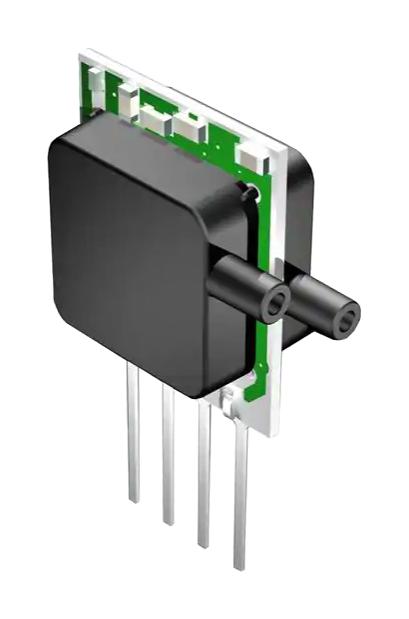

AMPHENOL ALL SENSORS 5INCHD1DIPMVMINI Low Pressure Sensor
The 5-inch differential pressure sensor offers precise measurement of low pressures from 0-5 inches H₂O, with high stability and linearity. Ideal for environmental controls, HVAC, and medical applications, it features temperature compensation and calibrated zero and span. Designed for non-corrosive gases like air, this sensor deliver accurate, ratiometric voltage output, suitable for various industrial uses. Its robust construction ensures long-term stability, making it a dependable choice for sensitive pressure measurement needs.
AMPHENOL ALL SENSORS 5INCHD1DIPMVMINI Low Pressure Sensor Specifications:
- Operating Pressure Range: 0-5 inches H₂O
- Output Span: 19.0 to 21.0 mV
- Offset Voltage: Zero differential pressure
- Offset Temperature Shift: +150 µV (0°C-50°C)
- Offset Warm-up Shift: 5 µV
- Offset Position Sensitivity: +10 µV (1g)
- Linearity Error: 0.05 to 0.25 % of span
- Supply Voltage: Up to 16 VDC
- Operating Temperature Range: -25°C to 85°C
- Storage Temperature Range: -40°C to 125°C
- Humidity Limits: 0-95% RH non-condensing
- Gasket Material: Suitable for dry gases
- Electrical Resistance: Input 4.5 kΩ, Output 1.5 kΩ
- Governing Standards: CE, RoHS (externally verified)
Buy the Buy All Sensors 5INCH-D1-DIP-MINI Part Number 5INCHD1DIPMVMINI Online
Order the All Sensors Low Pressure Sensor measuring 0-5 inches H₂O online today. Designed for high accuracy, stability, and durability. Perfect for HVAC, medical instrumentation, and environmental controls, this sensor features temperature compensation, calibrated zero and span, and a robust construction. Its reliable voltage output is suitable for a wide range of industrial applications, ensuring precise pressure measurement. Purchase now to benefit from fast shipping, competitive prices, and trusted quality—ideal for your sensitive measurement needs.
Get All Sensors 5INCH-D1-DIP-MINI today—built for precision and long-lasting durability in low-pressure measurement applications.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 5INCHD1DIPMVMINI?
You can click on the BUY or RFQ button to purchase 5INCHD1DIPMVMINI from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 5INCHD1DIPMVMINI?
You can download the 5INCHD1DIPMVMINI datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 5INCHD1DIPMVMINI?
AMPHENOL ALL SENSORS
