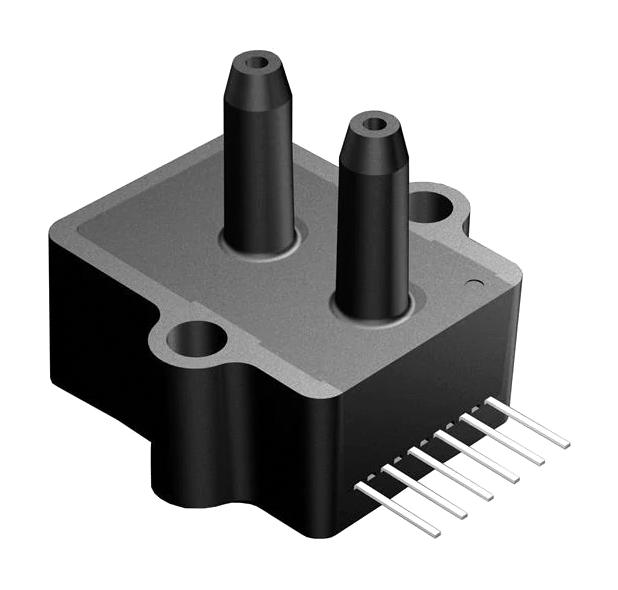

AMPHENOL ALL SENSORS 5INCHDMV Low Pressure Sensor
The 5 Inch Low Pressure Millivolt Output Pressure Sensor provides precise measurements for low pressure ranges from 0 to 5 inches of water. Featuring temperature compensation, calibrated zero and span, and a highly linear silicon micromachined structure, it offers stable performance over a temperature range of -25°C to 85°C. Designed for applications with non-corrosive gases, it has a ratiometric output with a supply voltage up to 16 V. Ideal for environmental controls, medical instrumentation, and HVAC systems requiring accurate low-pressure readings.
AMPHENOL ALL SENSORS 5INCHDMV Low Pressure Sensor Specifications:
- Pressure Range: 0-5” H2O
- Output Span: 20 mV (nominal)
- Offset Temperature Shift: -250 to +250 uV (0°C-50°C), -150 uV (0°C-70°C)
- Linearity: 0.05 to 0.25% of full scale
- Response Time: Less than 100 microseconds
- Supply Voltage: Up to 16 V DC
- Operating Temperature Range: -25°C to 85°C
- Process Connection: 1 inch diameter
- Reference: Non-corrosive, dry gases
- Humidity Limits: 0-95% RH (non-condensing)
Buy the Al Sensors Series 5 Inch Low Pressure Millivolt Sensor: 5INCHDMV
Order the Al Sensors 5INCHDMV low-pressure sensor online today to ensure accurate, stable measurements for your HVAC, medical, or environmental projects. This sensor offers a 0-5 inch water pressure range, excellent temperature compensation, and rapid response time, making it ideal for critical low-pressure applications. Its rugged construction ensures reliable performance over wide temperature ranges, and its easy integration with existing systems helps streamline deployment. Purchase now for unmatched precision and durability in your measurement solutions.
Buy Al Sensors 5INCHDMV low-pressure sensor now and experience precise, temperature compensated measurement in HVAC, environmental, and medical systems.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 5INCHDMV?
You can click on the BUY or RFQ button to purchase 5INCHDMV from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 5INCHDMV?
You can download the 5INCHDMV datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 5INCHDMV?
AMPHENOL ALL SENSORS
