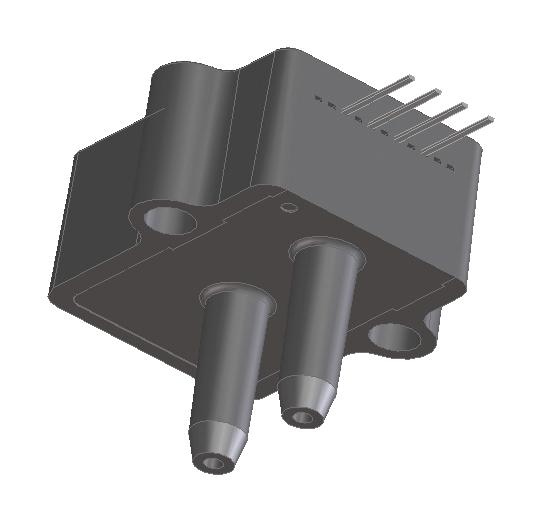

AMPHENOL ALL SENSORS 5PSID4VASCX Pressure Sensor
The 5PSID4VASCX series pressure sensor offers accurate, temperature-compensated measurements for various applications including medical, environmental, HVAC, and pneumatic controls. Utilizing proprietary package technology and silicon micromachined stress structures, it provides a linear, ratiometric 4.5 V output span with high stability. Its design reduces parasitic stress effects, ensuring superior reliability over a wide temperature range. Suitable for non-corrosive gases, it features 4.5 to 5.5 V supply voltage, with multiple pressure ranges like 0-5 PSID and 0-100 PSIA, and boasts minimal span and offset shifts to enhance measurement precision.
AMPHENOL ALL SENSORS 5PSID4VASCX Pressure Sensor Specifications:
- Supply Voltage: 4.5 to 5.5 VDC
- Output Span: 4.5 V ratiometric
- Temperature Range: -25 to 105°C
- Pressure Ranges: 0-5 PSID, 0-15 PSIA, 0-30 PSIA, 0-100 PSIA
- Burst Pressure: 30 to 150 PSI depending on model
- Proof Pressure: 15 to 100 PSI depending on model
- Quiescent Current: 7.5 mA
- Storage Temperature: -55 to 125°C
- Operating Temperature: 0 to 70°C
- Humidity Limits: 0-95% RH (non-condensing)
- Dimensions: Length approx. 0.174 inches (4.41 mm), width 0.10 inches (2.54 mm), pin size 0.25 inches (6.35 mm)
Buy the All Sensors Series ASCX Pressure Sensor: 5PSID4VASCX
Order the All Sensors pressure sensor 5PSID4VASCX online today and ensure precise pressure measurement for medical, HVAC, and environmental applications. This highly reliable, temperature-compensated sensor features a robust silicon micromachined structure that provides stable, accurate output over a wide temperature range. Its multiple pressure ranges, low span and offset shifts, and high stability make it ideal for demanding applications. Enjoy quick delivery, excellent customer support, and seamless integration by purchasing directly through our online store today.
Buy All Sensors ASCX pressure sensor 5PSID4VASCX now and experience unmatched reliability and performance in industrial measurement systems.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 5PSID4VASCX?
You can click on the BUY or RFQ button to purchase 5PSID4VASCX from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 5PSID4VASCX?
You can download the 5PSID4VASCX datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 5PSID4VASCX?
AMPHENOL ALL SENSORS
