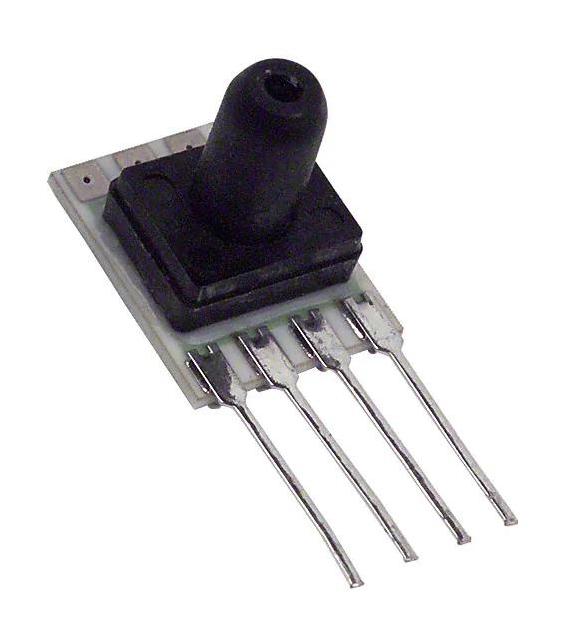

AMPHENOL ALL SENSORS 5PSIDHGRADEMINI Miniature Pressure Sensor
Miniature pressure sensors designed for high accuracy and stability, suitable for medical, environmental, and HVAC applications. This series features a compact silicon micromachined structure, calibrated millivolt output, temperature compensation, and low offset errors. Available in various pressure ranges from 0.3 PSI to 100 PSI with single or dual pressure ports, these sensors offer excellent linearity, quick response times under 100 microseconds, and a ratiometric output tied to supply voltage. Suitable for non-corrosive gases, they operate within -25°C to 85°C and are protected against humidity and lead temperature stress, ensuring reliable performance in industrial environments.
AMPHENOL ALL SENSORS 5PSIDHGRADEMINI Miniature Pressure Sensor Specifications:
- Pressure Ranges: 0.3 PSI to 100 PSI
- Output Span: 17.82 to 90.9 mV depending on pressure range
- Temperature Range: -25°C to 85°C
- Supply Voltage: 12 VDC (nominal)
- Maximum Supply Voltage: 16 VDC
- Response Time: < 100 microseconds
- Humidity Limits: 0-95% RH (non-condensing)
- Operating Pressure: Differential or gauge pressure depending on model
- Calibration: Zero and Span calibrated, temperature compensated
- Material: Silicon micromachined structure
- Pressure Ports: Single or dual port configurations
- Proof Pressure: Up to 150 PSI depending on model
- Offset Temperature Shift: ~40.5 mV from 0°C to 70°C
- Span Shift: ~41 mV over temperature range
- Certifications: Not specified, suitable for industrial use
Buy the Miniature Pressure Sensors – Reliable Pressure Measurement for Industrial Applications
Purchase Miniature Pressure Sensors online today—engineered for high accuracy, rapid response, and reliable performance. These sensors are ideal for medical instrumentation, HVAC systems, and environmental controls. Featuring a compact silicon micromachined structure, they provide a calibrated millivolt output, temperature compensation, and stability over a wide temperature range. Available in various pressure ranges from 0.3 PSI to 100 PSI, with single or dual ports, ensuring versatility for your application. Enjoy fast delivery and expert support for your industrial pressure measurement needs.
Get Miniature Pressure Sensors today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 5PSIDHGRADEMINI?
You can click on the BUY or RFQ button to purchase 5PSIDHGRADEMINI from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 5PSIDHGRADEMINI?
You can download the 5PSIDHGRADEMINI datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 5PSIDHGRADEMINI?
AMPHENOL ALL SENSORS
