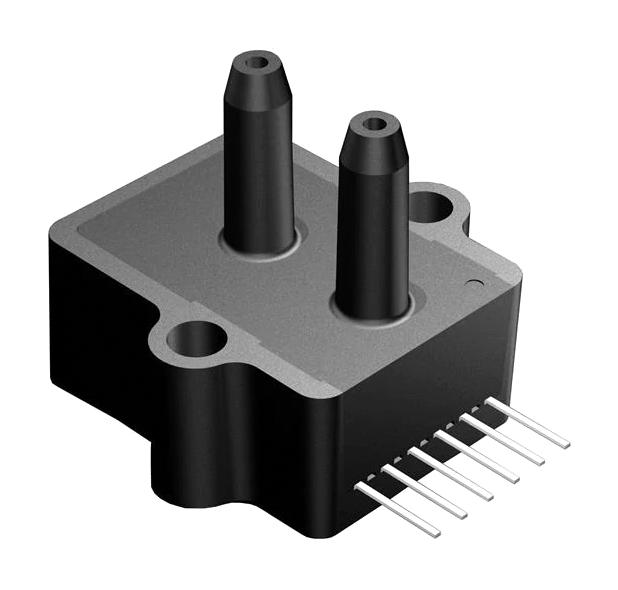

AMPHENOL ALL SENSORS 5PSIDHGRADEMV Pressure Sensor
The millivolt output pressure sensors are high-accuracy, temperature compensated devices designed for non-corrosive fluids like air and dry gases. Utilizing proprietary packaging and silicon micromachined stress concentration technology, they provide a highly linear and stable output across wide temperature ranges. Suitable for HVAC, medical instrumentation, and environmental controls, these sensors feature selectable pressure ranges from 0 to 4 inches H2O up to 0 to 150 PSI, with calibrated millivolt outputs, offset calibration, and compatibility with supply voltages up to 16V, ensuring precise and reliable pressure measurement in various industrial applications.
AMPHENOL ALL SENSORS 5PSIDHGRADEMV Pressure Sensor Specifications:
- Supply Voltage: up to 16 V DC
- Output Resistance: 3.0 kΩ
- Input Resistence: 20 kΩ
- Temperature Range: Operating from -25°C to 85°C, storage from -40°C to 125°C
- Humidity Limits: 0 to 95% RH non-condensing
- Pressure Ranges: 0-0.3 PSI to 0-150 PSI, with corresponding voltage spans from 20 mV to 99.0 mV
- Maximum Burst Pressure: up to 250 PSI
- Physical Dimensions: Approximate diameter 0.107 inches, length varies with model, pinout includes ±V, Vout, N/C
- Physical maximum ratings: Lead temperature up to 250°C, Proof Pressure up to 150 PSI
- Approvals: Generally designed for industrial environments
Buy the SensorTech 5PSIDHGRADEMV – Reliable Pressure Sensors for Industrial Applications
Order the SensorTech pressure sensor now for accurate, stable pressure measurement in HVAC, medical, or environmental monitoring systems. Its precise millivolt output and temperature compensation ensure consistent performance across a wide range of conditions. Ideal for non-corrosive gases, these sensors feature high linearity, adjustable pressure ranges up to 150 PSI, and easy integration with DC supply voltages up to 16V. Enhance your industrial systems with reliable, high-accuracy pressure sensing—buy online today for quick delivery and excellent support.
Get SensorTech 5PSIDHGRADEMV today—built for precision, stability, and long-lasting durability in pressure measurement.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS 5PSIDHGRADEMV?
You can click on the BUY or RFQ button to purchase 5PSIDHGRADEMV from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part 5PSIDHGRADEMV?
You can download the 5PSIDHGRADEMV datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of 5PSIDHGRADEMV?
AMPHENOL ALL SENSORS
