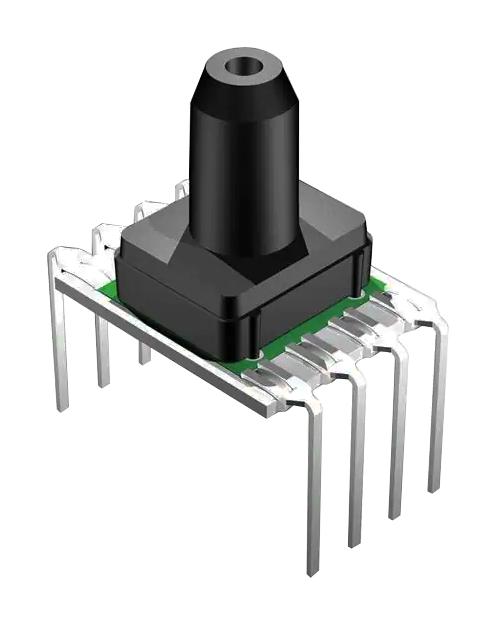

AMPHENOL ALL SENSORS BAROAFPRIMEMINI Miniature Pressure Sensor
The miniature pressure sensor offers high accuracy and stability, measuring pressures from 600 to 1,100 mbar with 0.25% linearity. It features temperature compensation, calibrated zero and span, and a silicon MEMS structure for superior linear output. Its compact design makes it ideal for medical instruments, environmental controls, weather stations, and altimeters, providing reliable measurements with a ratiometric output that operates from DC voltages up to 16 V. Suitable for non-corrosive gases, it ensures consistent performance across various temperature ranges, making it a versatile and precise pressure sensing solution.
AMPHENOL ALL SENSORS BAROAFPRIMEMINI Miniature Pressure Sensor Specifications:
- Pressure Range: 600 to 1100 mbar
- Proof Pressure: 45 PSI
- Burst Pressure: 60 PSI
- Output Voltage @ 600 mbar: 51.2 to 53.2 mV
- Linearity: 0.25%
- Supply Voltage: Up to 16 VDC
- Temperature Range: Compensated 0 to 70°C, Operating -25 to 85°C, Storage -40 to 125°C
- Resistance: Output Resistance 3.0k ohm, Input Resistance 15.0k ohm
- Humidity Limit: 0 to 95% RH (non-condensing)
- Dimensions: Compact size with various package options, approximately 0.16 inches (4.06 mm) thick
- Environment: Suitable for air, dry gases, and non-corrosive fluids
Buy the Buy All Sensors Miniature Pressure Sensor Part Number BAROAFPRIMEMINI Online
Order the All Sensors Miniature Pressure Sensor online today to ensure highly accurate, temperature-compensated pressure measurements for medical, environmental, and weather-related applications. This compact, high-performance sensor offers a measurement range of 600 to 1100 mbar, with calibrated zero and span, and a ratiometric output compatible with DC power supplies up to 16 V. Its robust silicon MEMS technology guarantees linear output and stability across wide temperature and humidity ranges, making it the ideal choice for critical sensing tasks requiring precision and reliability.
Buy All Sensors BAROAFPRIMEMINI now and experience unmatched accuracy and stability for precise pressure measurements in critical applications.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS BAROAFPRIMEMINI?
You can click on the BUY or RFQ button to purchase BAROAFPRIMEMINI from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part BAROAFPRIMEMINI?
You can download the BAROAFPRIMEMINI datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of BAROAFPRIMEMINI?
AMPHENOL ALL SENSORS
