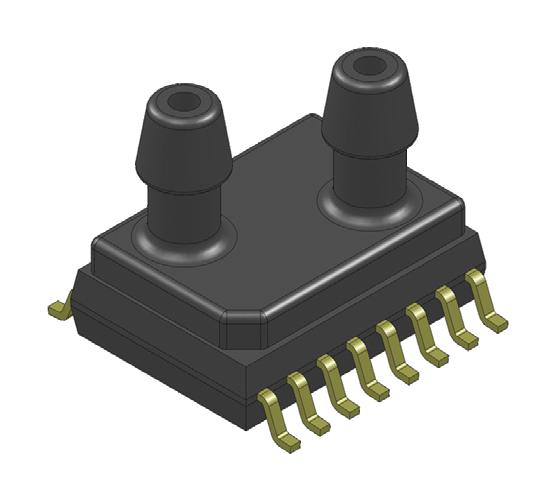

AMPHENOL ALL SENSORS BLCRL01DD4 Low Voltage Pressure Sensor
The BLCR Series Low Voltage Pressure Sensors are compact, highly accurate devices designed to measure pressure ranges from +0 to 30 inH20 with excellent linearity of 0.1%. Utilizing Dual Die Reference technology and CoBeam technology, these sensors offer reduced supply voltage requirements from 1.8V to 3.3V, making them ideal for medical, environmental, and HVAC applications. They feature robust construction with optional Parylene coating, a wide temperature range from -25°C to 85°C, and minimal position sensitivity for long-term stability and reliable performance in non-corrosive gaseous environments.
AMPHENOL ALL SENSORS BLCRL01DD4 Low Voltage Pressure Sensor Specifications:
- Pressure Range: +0 to 30 inH20
- Linearity: 0.1% typical
- Supply Voltage: 1.8V to 3.3V
- Proof Pressure: 200 inH20 (50 KPa)
- Burst Pressure: 800 inH20 (200 KPa)
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Humidity Limits: 0 to 95% RH (non-condensing)
- Output Voltage: Ratio-metric to supply voltage
- Material: Ceramic sensing element, Parylene coating (optional)
- Dimensions: Compact package, various models
- Soldering: Post reflow wait 36 hours before calibration
Buy the Buy Sensors Low Voltage Pressure Sensor Part Number BLCRL01DD4 Online
Discover the convenience of purchasing the highly reliable low voltage pressure sensor online. Designed for precision measurement from +0 to 30 inH20 with 0.1% linearity, this sensor is perfect for medical, HVAC, and environmental monitoring systems. Its low power consumption, optional Parylene coating, and wide temperature range make it suitable for various demanding applications. Enjoy fast delivery, expert support, and confidence in performance by ordering today, ensuring your project benefits from top-tier pressure sensing technology.
Buy Sensors low voltage pressure sensor BLCRL01DD4 now and experience unmatched stability and accuracy in your medical or environmental applications.
