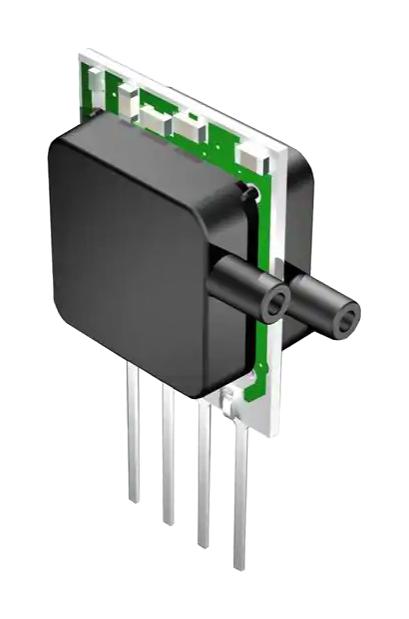

AMPHENOL ALL SENSORS BLVRL01DB1NSN Pressure Sensor
The BLVR Series Low Voltage Pressure Sensors utilize dual die reference technology and CoBeam technology, providing high accuracy and stability. They operate between 1.8V and 3.3V, ideal for medical, environmental, HVAC, and portable devices. The sensors feature specific pressure ranges from 1 to 30 inH20, with minimal linearity errors of 0.3%. Compact and corrosion-resistant, they are designed for non-corrosive gases, offering long-term stability, low power consumption, and improved warm-up shift distribution. Suitable for precise pressure measurement applications in various industrial environments.
AMPHENOL ALL SENSORS BLVRL01DB1NSN Pressure Sensor Specifications:
- Supply Voltage: 1.8V to 3.3V
- Pressure Ranges: 1, 5, 10, 20, 30 inH20
- Linearity: 0.3%
- Offset Voltage: 0.8 mV at zero pressure
- Temperature Range: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Proof Pressure: 100 inH20 to 430 inH20 depending on model
- Burst Pressure: up to 800 inH20
- Operating Humidity: 0 to 95% RH (non-condensing)
- Dimensions: Compact package with port options in inches
- Materials: Parylene coating available
- Resistances: Output Resistance approximately 15 kΩ
Buy the All Sensors BLVRL01D – Reliable Pressure Sensor for Industrial Applications
Enhance your pressure sensing capabilities with the BLVR Series low voltage sensors. Designed with dual die reference technology and CoBeam technology, they provide high accuracy and stability across various environments. Operating on 1.8V to 3.3V, these sensors are perfect for medical, HVAC, environmental controls, and portable devices. Compact and corrosion-resistant, they feature multiple pressure ranges with minimal linearity error of 0.3%, making them ideal for precise industrial applications. Order online today for reliable performance.
Buy All Sensors BLVRL01D now and experience unparalleled accuracy and stability in pressure measurement for your industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS BLVRL01DB1NSN?
You can click on the BUY or RFQ button to purchase BLVRL01DB1NSN from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part BLVRL01DB1NSN?
You can download the BLVRL01DB1NSN datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of BLVRL01DB1NSN?
AMPHENOL ALL SENSORS
