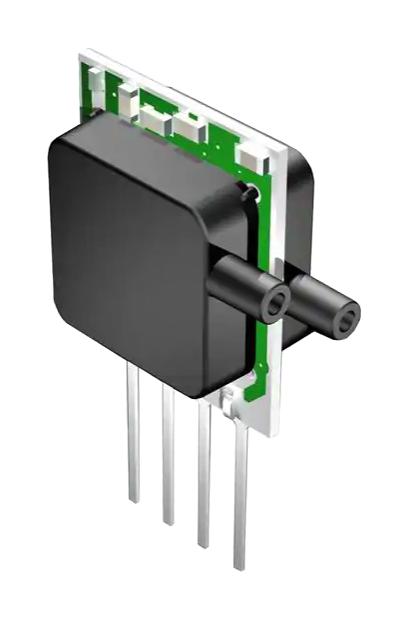

AMPHENOL ALL SENSORS BLVRL10DB1NSN Low Voltage Pressure Sensor
The BLVR Series Low Voltage Pressure Sensors are highly accurate devices designed for measuring non-corrosive, dry gases and air. They operate with a supply voltage of 1.8 to 3.3V, offering a pressure range from 1 to 30 inH20. This series features dual die reference technology, reducing offset errors, and All Sensors CoBeam Technology enhances stability and position sensitivity. Compact and versatile, these sensors are suitable for medical instrumentation, environmental controls, HVAC, and portable devices, providing reliable, long-term performance.
AMPHENOL ALL SENSORS BLVRL10DB1NSN Low Voltage Pressure Sensor Specifications:
- Supply Voltage (Vs): 1.8 to 3.3 V DC
- Pressure Ranges: 1, 5, 10, 20, 30 inH20
- Output: Ratio-metric to supply voltage
- Linearity: 0.3%
- Offset Voltage: 0.5 mV
- Temperature Range: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Proof Pressure: Up to 200 inH20 for smaller ranges, higher for larger ranges
- Burst Pressure: 300-800 inH20 depending on model
- Response Time: 100 ms
- Humidity Limits: 0-95% RH (non-condensing)
- Weight: 1.2 to 12 grams depending on package
- Package Options: BINS, B2NS, BGNS
Buy the All Sensors Series BLVR Low Voltage Pressure Sensors: BLVRL10DB1NS
Purchase the All Sensors Series BLVR Low Voltage Pressure Sensors online today for accurate, stable, and cost-effective measurement solutions. Designed for non-corrosive gases and air measurement, these sensors operate at low voltage from 1.8 to 3.3V, offering various pressure ranges from 1 to 30 inH20. Their advanced dual die reference and CoBeam Technology ensure reduced offset errors, enhanced long-term stability, and superior position sensitivity. Ideal for medical, environmental, HVAC, and portable applications, these sensors deliver dependable performance with minimal power consumption. Buy now for fast delivery!
Order your All Sensors Series BLVR Low Voltage Pressure Sensors today and improve your environmental or medical instrumentation projects with reliable performance.
