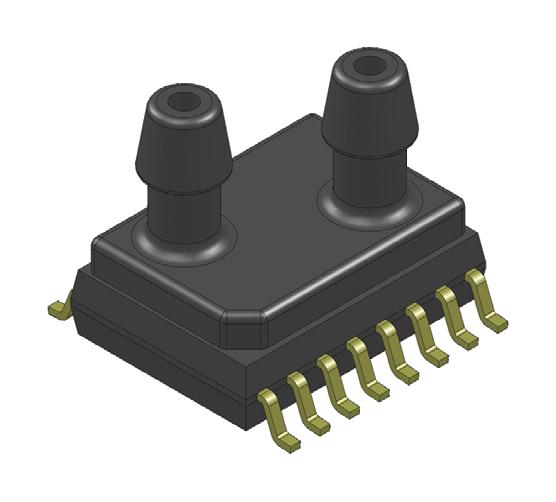

AMPHENOL ALL SENSORS DLC015DD4 pressure sensor
The DLC Series offers compact, high-resolution pressure sensors based on All Sensors' CoBeam™ Technology, providing exceptional space savings and stable 16-bit digital output for various applications. Designed for non-corrosive, dry gases and air, these sensors operate between 0°C to 70°C (compensated) and -40°C to 85°C (operating). They feature digital I2C interface, low power consumption, and multiple pressure ranges from 1 inch H2O to 150 PSI. Their small sizes start as tiny as 7mm x 7mm, ideal for medical, industrial, HVAC, and portable systems that require accurate, reliable pressure measurement in tight spaces.
AMPHENOL ALL SENSORS DLC015DD4 pressure sensor Specifications:
- Pressure Ranges: from 1 inH2O to 150 PSI
- Resolution: 16-bit digital output
- Supply Voltage: 1.8V to 3.6V (typical 3.3V)
- Operating Temperature: -40°C to 85°C
- Compensated Temperature Range: 0°C to 70°C
- Max Device Temperature: 245°C
- Humidity Limits: 0 to 95% RH (non-condensing)
- Pressure Accuracy: typically within +2.00 to +3.00%FSS depending on model
- Pressure Proof: varies by model, e.g., 200 inH2O for low range, 225 psi for high range
- Materials: Non-corrosive, suitable for dry gases
- Digital Interface: I2C with 12C protocol at 100-400 kHz
- Power Consumption: Active 2.0-2.5mA, Idle <250nA
- Dimensions: as small as 7mm x 7mm (D4 package), pin layouts per datasheet
- Soldering: Max 270°C for 2-4 seconds, bake prior to reflow
- Certifications: UL and RoHS compliant
Buy the Buy All Sensors DLC Series Part Number DLC015DD4 Online
Purchase the All Sensors DLC Series DLC015DD4 digital pressure sensor online now to ensure precise, stable pressure measurements in tight spaces. This high-resolution 16-bit sensor features I2C interface for easy integration into medical, industrial, HVAC, or portable systems. With operating ranges up to 150 PSI and as small as 7mm x 7mm, it delivers excellent performance, low power consumption, and long-term stability. Get yours today and upgrade your pressure sensing applications with trusted quality from All Sensors.
Order your All Sensors DLC Series DLC015DD4 digital pressure sensor today and enhance your projects with reliable, compact, high-resolution measurement technology.
