AMPHENOL ALL SENSORS DLCL30DD4 Pressure Sensor
The DLC series compact high-resolution pressure sensors utilize All Sensors’ CoBeam™ technology, offering exceptional space savings and high performance. These sensors measure low to moderate pressure ranges from 1 inch H2O to 150 PSI with a 16-bit digital output via I2C interface. Designed with a small package size as small as 7mm x 7mm, they are suitable for medical breathing, industrial, HVAC, and portable applications. Features include low power consumption, accurate readings across a wide temperature range, and calibration for dry gases and air. The sensors operate at supply voltages from 1.8V to 3.6V, are environmentally robust, and ideal where space and cost efficiency are critical.
AMPHENOL ALL SENSORS DLCL30DD4 Pressure Sensor Specifications:
- Pressure Ranges: 1 inH2O to 150 PSI
- Resolution: 16-bit digital output
- Supply Voltage: 1.8V to 3.6V
- Operating Temperature: -40°C to 85°C
- Temperature Compensation: 0°C to 70°C (contact factory for other ranges)
- Maximum Device Temperature: 245°C
- Humidity Limits: 0 to 95% RH (non-condensing)
- Output Signal: Digital via I2C interface, 7-byte data format
- Device Size: As small as 7mm x 7mm
- Pressure Accuracy: Within +2% to +3% FSS depending on model
- Pressure Proof and Burst Pressure: Ranges vary per model (see datasheet)
- Environmental: MIL-STD-202G, IP ratings depend on package options
- Application: Suitable for dry gases, air, environmental monitoring, medical breathing devices, portable equipment
- Calibration: Calibrated and compensated for temperature and offset variations
- Soldering: Max reflow temperature 270°C, advise 48 hours cooldown before calibration after reflow

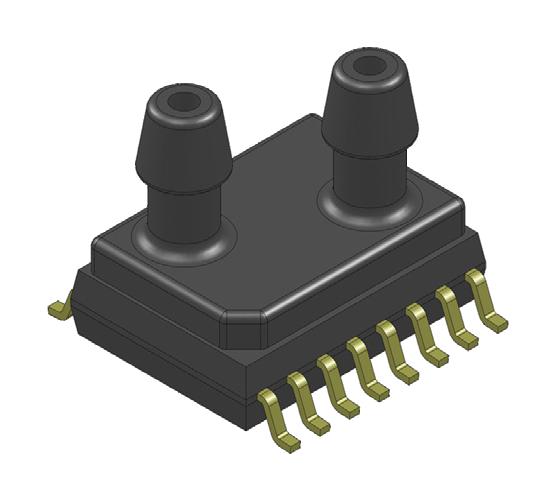

Buy the Buy All Sensors DLC Series Pressure Sensor Part Number DLCL30DD4 Online
Explore the advanced design of the All Sensors DLC series pressure sensors, offering high-resolution digital output and compact size. Perfect for medical, industrial, HVAC, and portable applications where space and accuracy are critical. With a wide operating temperature range and low power consumption, the DLC sensors deliver reliable, stable measurements for dry gases and air. Easy integration via I2C interface, calibration included, and robust environmental specs ensure long-term performance. Purchase online today and enhance your process control and measurement systems with precision sensors built for durability and efficiency.
Get All Sensors DLC DLCL30DD4 today—compact, high-resolution pressure sensor built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS DLCL30DD4?
You can click on the BUY or RFQ button to purchase DLCL30DD4 from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part DLCL30DD4?
You can download the DLCL30DD4 datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of DLCL30DD4?
AMPHENOL ALL SENSORS
