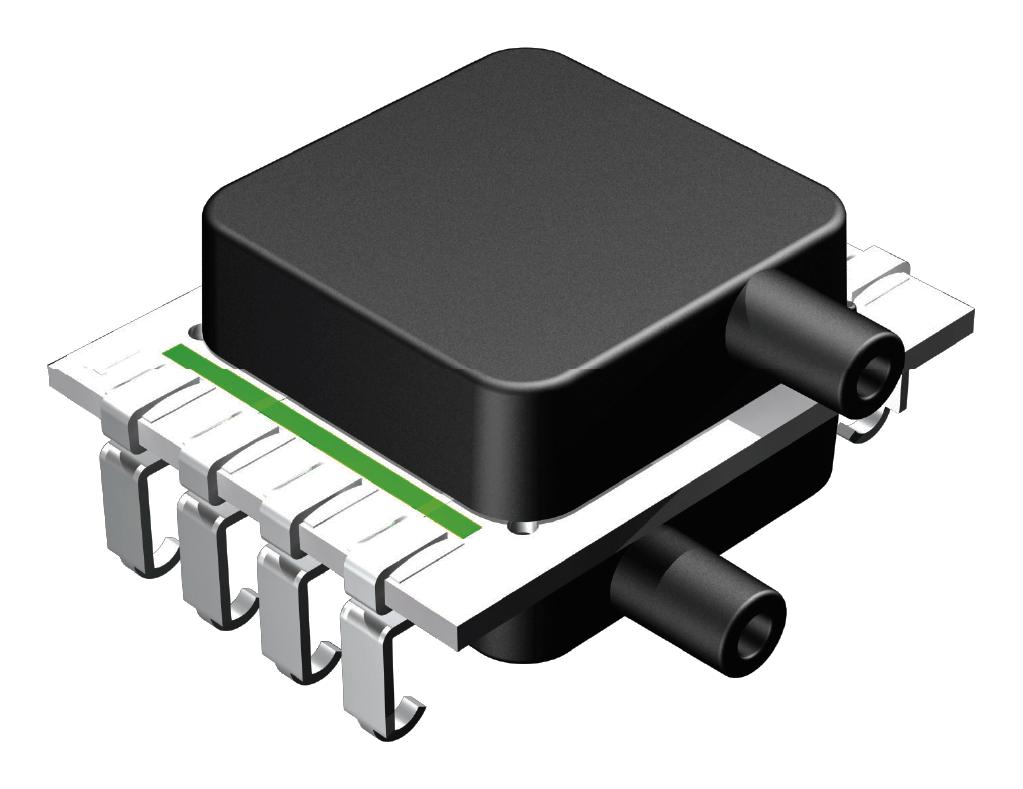

AMPHENOL ALL SENSORS DLHL10DE1BDCNAV8 Digital Pressure Sensor
The DLH Series Low Voltage Digital Pressure Sensors feature high-resolution digital output, accuracy better than 0.25%, and supply voltage range of 1.68V to 3.6V. Based on All Sensors' CoBeam Technology, these sensors reduce package stress, ensuring long-term stability. They offer multiple pressure ranges (+5 to +60 inH20), interface options (I2C or SPI), and are suitable for medical, environmental, HVAC, industrial, and portable equipment applications. The sensors include calibration, compensation, and optional moisture-resistant Parylene coating for harsh environments.
AMPHENOL ALL SENSORS DLHL10DE1BDCNAV8 Digital Pressure Sensor Specifications:
- Pressure ranges: +5 to +60 inH20, 0 to 30 inH20, 0 to 60 inH20, etc.
- Supply Voltage: 1.68V to 3.6V
- Accuracy: Better than 0.25%
- Resolution: 16/17/18-bit digital output options
- Interface: I2C or SPI, automatically selected
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Proof Pressure: 200 to 800 inH20 depending on model
- Burst Pressure: up to 800 inH20
- Humidity Limits: 0 to 95% RH non-condensing
- Dimensions vary by package, with options including E1NS, E1BD, E1NJ, E2NS, E2BD, E2NJ
- Standard Certifications: UL Listed, CSA Certified
- Lead Soldering Temperature: 270°C (2-4 sec)
Buy the All Sensors Series DLH Digital Pressure Sensor: DLHL10DE1BDCNAV8
Experience precise, reliable measurements with the DLH Series Digital Pressure Sensors from All Sensors. These sensors offer high-resolution digital outputs, multiple pressure ranges, and robust interface options (I2C or SPI) suitable for demanding medical, environmental, HVAC, and industrial applications. Designed with advanced CoBeam Technology, they ensure long-term stability and accuracy. Optional moisture-resistant Parylene coating provides extra durability. Easy to integrate and operate from a low power supply, these sensors are perfect for portable and battery-powered systems. Purchase online today for superior pressure sensing performance.
Order your All Sensors Series DLH digital pressure sensor today and enhance your medical, industrial, or HVAC projects with dependable, high-resolution performance.
