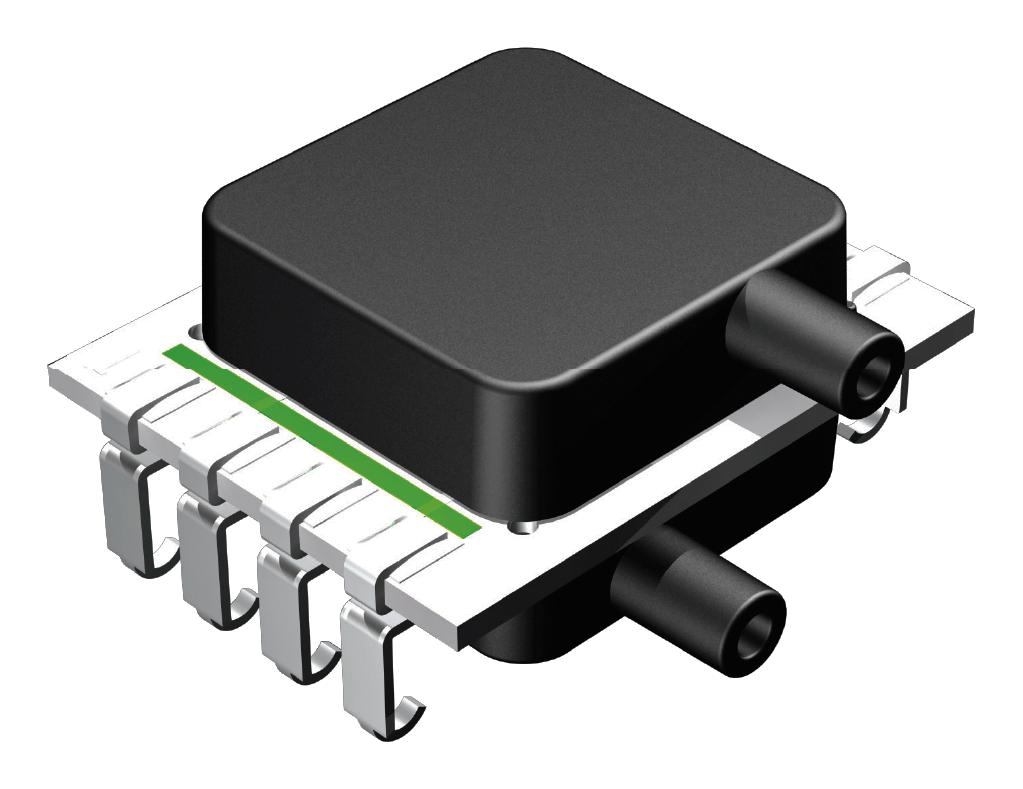

AMPHENOL ALL SENSORS DLHL10DE1BDINAV8 Digital Pressure Sensor
The DLH Series Low Voltage Digital Pressure Sensors utilize advanced CoBeam technology for high stability and accuracy in measuring pressures from 0 to 60 inH20. These digital sensors support I2C and SPI interfaces, enabling easy integration into process controls and measurements such as medical breathing, HVAC, and industrial systems. They feature calibration, compensation, and optional Parylene coating for moisture resistance, with resolutions up to 18-bit and working voltages from 1.68V to 3.6V. Designed for use with non-corrosive gases, these sensors combine precise output, low power consumption, and robust construction.
AMPHENOL ALL SENSORS DLHL10DE1BDINAV8 Digital Pressure Sensor Specifications:
- Pressure Range: 0 to 60 inH20
- Supply Voltage Range: 1.68V to 3.6V
- Accuracy: Better than 0.25%
- Output Resolution: Up to 18-bit
- Interface: I2C and SPI (auto-selected)
- Temperature Range: -25°C to 85°C
- Operating Pressure: 200 inH20 proof pressure, up to 800 inH20 burst pressure depending on model
- Power Consumption: Active mode 2.0 mA, Idle mode 250 nA
- Dimensions: Standard packaged designs with various port options
- Sensor Technology: CoBeam TM for stability and position sensitivity
- Environmental Resistance: Optional Parylene coating for moisture/harsh media
- Package Types: E1NS, E1BD, E2NS, E2BD, E1NJ, E2NJ
- Additional Features: Calibration, proprietary compensation algorithms, optional moisture barrier
Buy the Buy Sensors Inc Pressure Part Number DLHL10DE1BDINAV8 Online
Experience reliable and precise pressure measurement with the Sensors Inc Digital Pressure Sensor. Supporting up to 18-bit resolution and dual interfaces, it seamlessly integrates into medical, HVAC, and industrial systems. Its advanced CoBeam technology ensures long-term stability, while optional Parylene coating offers moisture resistance. Compact and energy-efficient, this sensor is ideal for dry gases and air applications, providing calibration and compensation for consistent accuracy across a wide temperature range. Order online today for robust performance and technological excellence.
Get Sensors Inc Pressure DLHL10DE1BDINAV8 today—designed for precise measurement and durable operation in industrial and medical environments.
