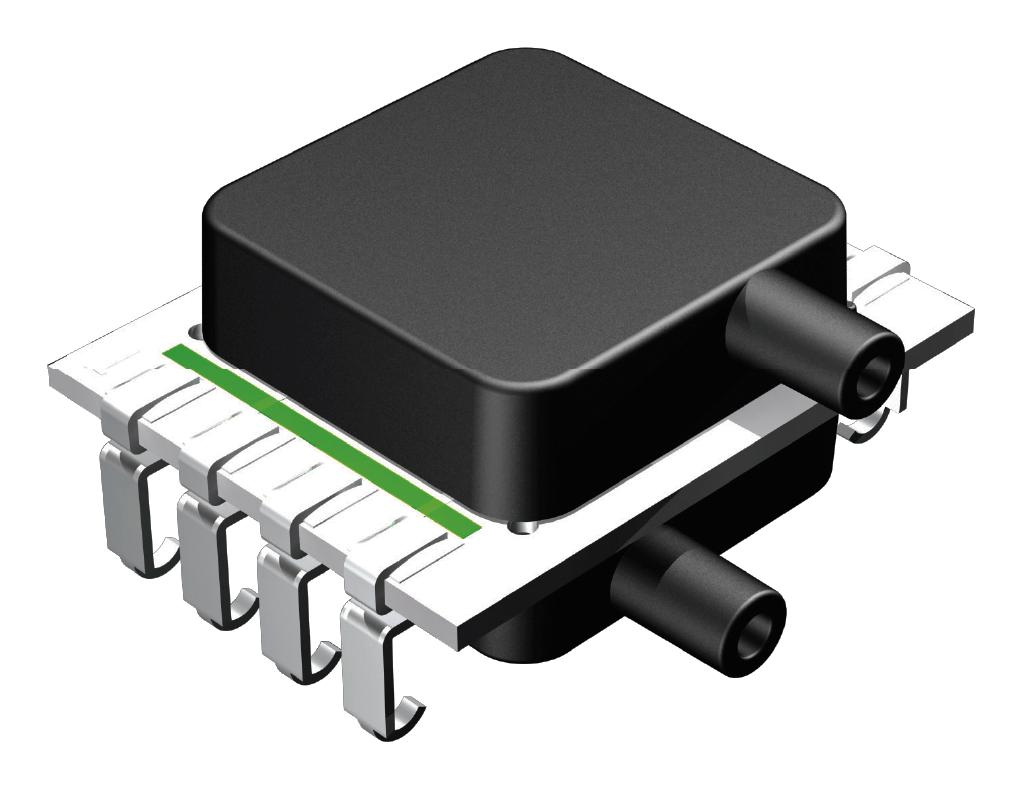

AMPHENOL ALL SENSORS DLHL30DE1BDCNAV8 Digital Pressure Sensor
The DLH Series Mini Digital Pressure Sensors utilize All Sensors’ CoBeam™ Technology, offering high accuracy better than 0.25%, and high-resolution digital outputs up to 18-bit. These sensors operate over +5 to 60 inH20 pressure ranges, with a supply voltage of 1.68V to 3.6V. Designed for medical, environmental, HVAC, industrial, and portable applications, they feature SPI or I2C interfaces, low power consumption, and optional Parylene coating for harsh media. Calibration, temperature compensation, and stable long-term performance make these sensors suitable for non-corrosive gases and dry air.
AMPHENOL ALL SENSORS DLHL30DE1BDCNAV8 Digital Pressure Sensor Specifications:
- Pressure Range: +5 to 60 inH20
- Supply Voltage Range: 1.68V to 3.6V
- Output Resolution: 16, 17, or 18-bit options
- Accuracy: Better than 0.25%
- Communication Interface: SPI or I2C (Automatically Selected)
- Temperature Range: -25°C to 85°C
- Operating Voltage: 3.3V ±5%
- Power Consumption: Active mode 2.0 mA, Idle mode 250 nA
- Pressure Accuracy: ±0.4% of full scale span
- Memory Error Detection: EEPROM checksum fail indicator
- Protection: Optional Parylene coating for moisture & harsh media
- Pinout: GND, Vcc, SDA, SCL, MISO, MOSI, SS, EOC
- Dimensions & Package: E1NS, E2NS, E1BD, E2BD, E1NJ, E2NJ packages with suggested pad layouts
- Certifications: RoHS compliant, suitable for industrial environments
Buy the All Sensors DLH30DE1BD – Reliable Digital Pressure Sensors for Industrial Applications
Purchase the All Sensors DLH30DE1BD digital pressure sensor online today to enjoy high-resolution 18-bit accuracy, versatile SPI and I2C interfaces, and robust performance across a wide temperature range. Ideal for medical, environmental, HVAC, and industrial control systems, these sensors feature optional moisture-resistant Parylene coating, low power consumption, and calibration for reliable long-term operation. Ensure your systems have precise pressure measurement capabilities with our dependable, easy-to-integrate digital sensors designed for non-corrosive gases and dry air applications.
Order your All Sensors Series DLH30DE1BD digital pressure sensor today and ensure precise, stable measurements for your medical, HVAC, or industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS DLHL30DE1BDCNAV8?
You can click on the BUY or RFQ button to purchase DLHL30DE1BDCNAV8 from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part DLHL30DE1BDCNAV8?
You can download the DLHL30DE1BDCNAV8 datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of DLHL30DE1BDCNAV8?
AMPHENOL ALL SENSORS
