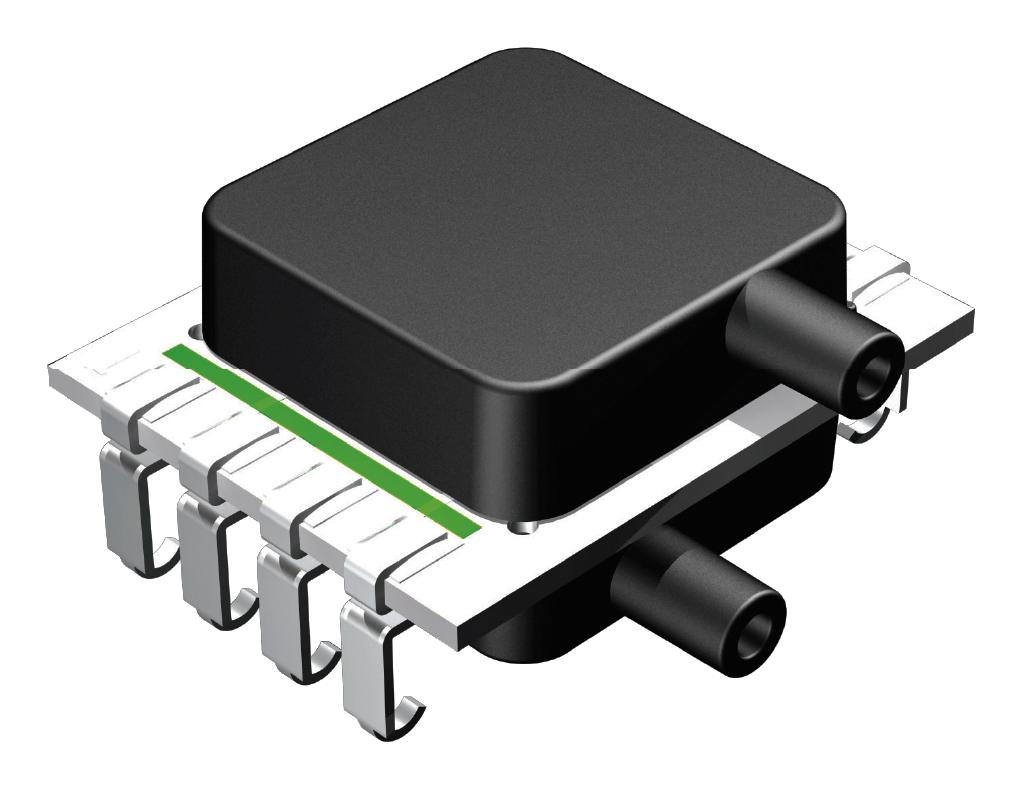

AMPHENOL ALL SENSORS DLHRF50DE1BDCNAV8 Digital Pressure Sensor
The DLHR Series Mini Digital Pressure Sensor utilizes All Sensors’ CoBeam technology for enhanced stability and position sensitivity. It offers a wide range of pressure measurement from 0.5 to 60 inH2O, with outputs in high-resolution 16, 17, or 18-bit digital formats via I2C or SPI interfaces. Designed for non-corrosive, dry gases and air, this compact sensor features low power consumption, internal temperature compensation, optional moisture protection, and operating in a temperature range of -25°C to 85°C. Suitable for medical breathing, HVAC, industrial controls, and portable applications, it guarantees accuracy and durability in demanding environments.
AMPHENOL ALL SENSORS DLHRF50DE1BDCNAV8 Digital Pressure Sensor Specifications:
- Pressure Range: 0.5 to 60 inH2O
- Supply Voltage: 1.68V to 3.6V
- Output Resolution: 16/17/18 bit selectable
- Interface: I2C or SPI (automatic switching)
- Accuracy: Better than 0.25%
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Humidity Range: 0 to 95% RH non-condensing
- Maximum Soldering Temperature: 270°C for 2-4 seconds
- Packaging: SIP, DIP, SMT options available
- Materials: Parylene coating optional for moisture/hars media protection
- Outputs: Calibrated, compensated, stable over temperature
- Power Consumption: Low power mode available for battery systems
- Application: Medical breathing, HVAC, industrial control, portable equipment
Buy the All Sensors Series DLHR Pressure Sensor: DLHRF50DE1BDCNAV8
Purchase the All Sensors Series DLHR digital pressure sensor online today to benefit from high-resolution measurements, compact design, and robust reliability. Perfect for medical breathing systems, HVAC control, industrial automation, and portable devices, this sensor offers exceptional accuracy, low power consumption, and ease of integration with I2C or SPI interfaces. Ensure consistent, calibrated pressure readings in harsh environments with optional moisture protection. Get yours now and enhance your project performance with a trusted, industrial-grade sensor engineered for durability and precision.
Order your All Sensors Series DLHR pressure sensor today and ensure accurate, reliable measurement for your industrial and medical projects.
