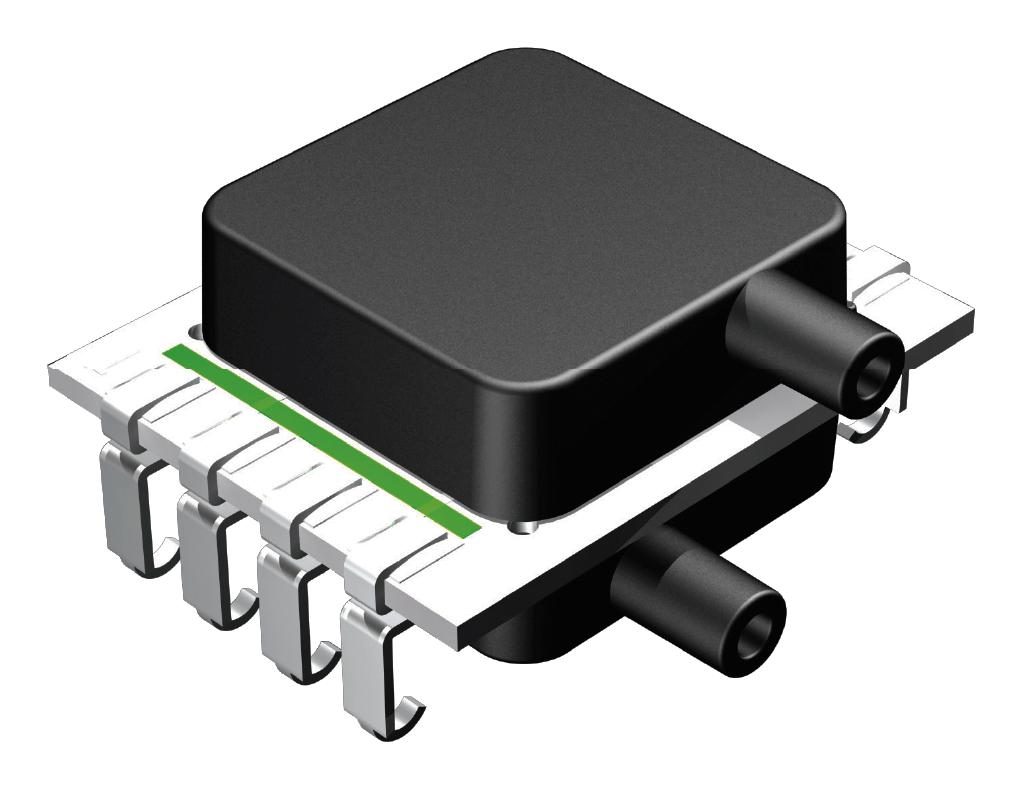

AMPHENOL ALL SENSORS DLHRL01DE1BDCNAV8 Digital Pressure Sensor
The DLHR Series Low Voltage Digital Pressure Sensors utilize CoBeam Technology for enhanced stability and reduced package stress susceptibility. These calibrated sensors offer high resolution, precision digital output, and versatile interfaces including I2C and SPI. Suitable for measuring non-corrosive gases like air and dry gases, they feature wide temperature ranges, optional moisture-resistant parylene coating, and low power consumption ideal for portable and medical applications. Their compact design simplifies integration into environmental controls, HVAC, industrial systems, and portable equipment, ensuring accurate and reliable pressure measurement across various demanding environments.
AMPHENOL ALL SENSORS DLHRL01DE1BDCNAV8 Digital Pressure Sensor Specifications:
- Pressure Range: 0.5 to 60 inH2O
- Supply Voltage Range: 1.68V to 3.6V
- Resolution Options: 16/17/18 bit output
- Accuracy: Better than 0.25%
- Output Transfer Function: 24-bit pressure and temperature data
- Communication Interface: I2C or SPI (auto-selected)
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Humidity Limits: 0 to 95% RH non-condensing
- Lead Soldering Temperature: 270°C for 2-4 seconds
- Environmental Protection: Optional moisture/harsh media coating
- Power Consumption: Active mode 2-2.6 mA, Idle mode 100-250 nA
- Device Packaging: DIP, J-lead SMT, Low Profile configurations
- Proof Pressure: Up to 200 inH2O (varies by model)
- Burst Pressure: Up to 200 inH2O (varies by model)
Buy the All Sensors Series DLHR Pressure Sensor: DLHRL01DE1BDCNAV8
Discover the reliable performance of the All Sensors Series DLHR digital pressure sensor. Designed for high accuracy, flexible interface options, and ease of integration, these sensors are perfect for environmental control, HVAC, industrial monitoring, and portable systems. With configurable resolution, wide temperature range, and optional moisture protection, they ensure stable operation in critical applications. Purchase online today to enhance your process control systems with proven, high-quality pressure sensing technology tailored for demanding environments and precise measurements.
Order your All Sensors Series DLHR pressure sensor today and experience reliable and precise pressure measurements for your demanding applications.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS DLHRL01DE1BDCNAV8?
You can click on the BUY or RFQ button to purchase DLHRL01DE1BDCNAV8 from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part DLHRL01DE1BDCNAV8?
You can download the DLHRL01DE1BDCNAV8 datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of DLHRL01DE1BDCNAV8?
AMPHENOL ALL SENSORS
