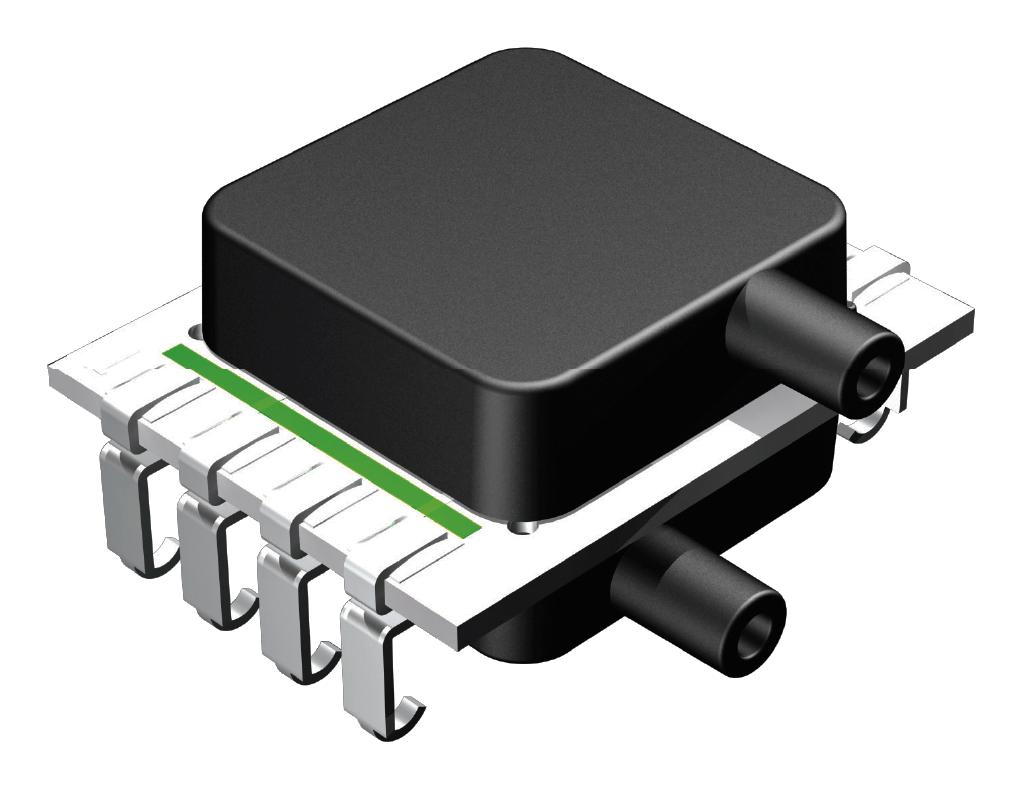

AMPHENOL ALL SENSORS DLHRL05DE1BDINAV8 Digital Pressure Sensor
The DLHR Series Low Voltage Digital Pressure Sensors utilize All Sensors’ CoBeam Technology for enhanced long-term stability and reduced package stress susceptibility. These sensors feature a digital interface supporting I2C or SPI, which are automatically selected, and offer high-resolution 16/17/18-bit output with accuracy better than 0.25%. Designed for use with non-corrosive gases like air, they include options for moisture protection through optional parylene coating. Suitable for medical breathing, environmental controls, HVAC, industrial control, and portable equipment, these sensors combine precise measurement with low power consumption, making them ideal for various process and measurement applications.
AMPHENOL ALL SENSORS DLHRL05DE1BDINAV8 Digital Pressure Sensor Specifications:
- Pressure Range: 0.5 to 60 inH2O
- Supply Voltage Range: 1.68V to 3.6V
- Accuracy: Better than 0.25%
- Resolution: 16/17/18-bit output options
- Operating Temperature: 0°C to 70°C (Commercial), -20°C to 85°C (Industrial), -25°C to 85°C (Operating)
- Storage Temperature: -40°C to 125°C
- Humidity Limits: 0 to 95% RH (non-condensing)
- Maximum Supply Voltage: 3.63V (Absolute Maximum)
- Lead Soldering Temperature: 270°C for 2-4 sec
- Interface: I2C and SPI supported, auto-selected, with timing specifications
- Material: Non-corrosive fluids compatible, optional parylene coating available for harsh environments
- Device Package Options: DIP, J-lead SMT, Low profile variants
Buy the All Sensors Series DLHR Digital Pressure: DLHRL05DE1BDINAV8
Purchase the All Sensors Digital Pressure Sensor today and enjoy reliable, high-accuracy measurement capabilities with support for I2C and SPI interfaces. This sensor's advanced technology ensures precise readings, stable operation, and optional moisture protection through parylene coating. Ideal for medical breathing devices, HVAC systems, industrial controls, and portable equipment, it provides excellent performance over wide temperature ranges. Convenient online ordering guarantees quick delivery of a durable, high-resolution sensor designed for demanding process control and measurement environments.
Get All Sensors DLHRL05DE1BDINAV8 today—built for precision and long-lasting durability in pressure measurement applications.
