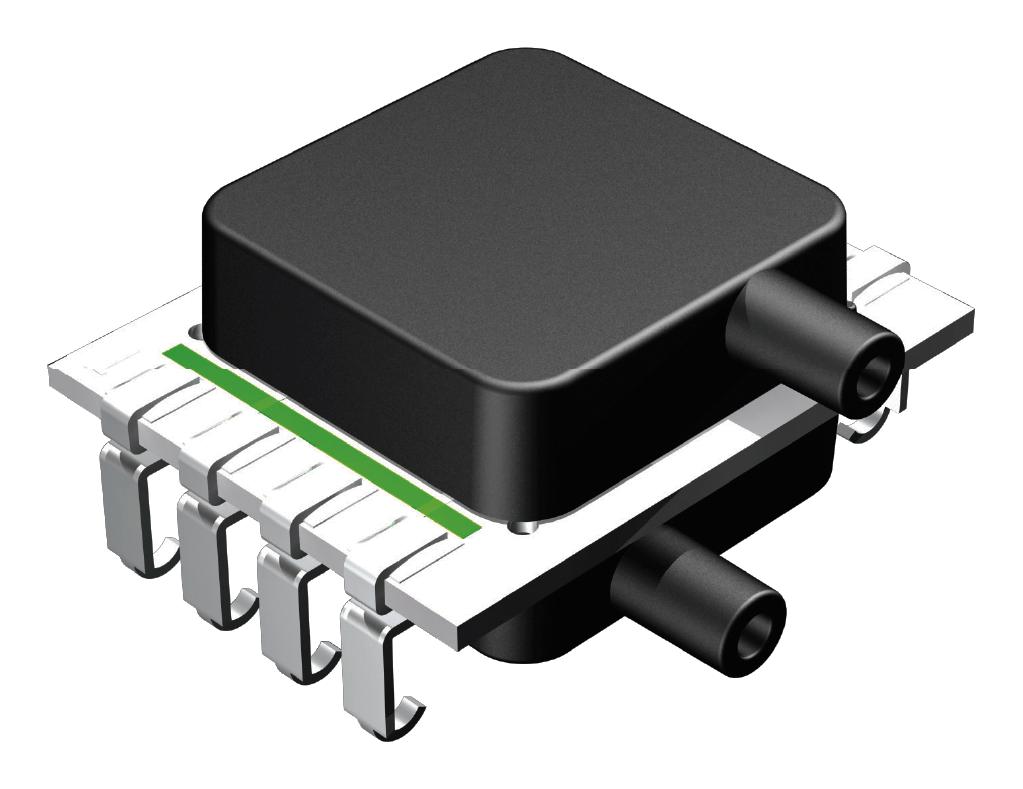

AMPHENOL ALL SENSORS DLHRL30DE1BDCNAV8 Digital Pressure Sensor
The DLHR Series Low Voltage Digital Pressure Sensors utilize CoBeam™ Technology for enhanced stability and sensitivity, suitable for non-corrosive gases like air. They feature digital interfaces supporting I2C and SPI protocols, with high resolution outputs of up to 18 bits, offering accuracy better than 0.25%. Designed for medical, environmental, HVAC, and industrial applications, these sensors operate within a wide temperature range (-25°C to 85°C) and low supply voltages (1.68V to 3.6V). They include options for moisture-resistant parylene coating, ensuring reliable long-term performance in harsh environments.
AMPHENOL ALL SENSORS DLHRL30DE1BDCNAV8 Digital Pressure Sensor Specifications:
- Pressure Ranges: 0.5 to 60 inH2O
- Supply Voltage: 1.68V to 3.6V
- Output Resolution: Up to 18 bits
- Accuracy: Better than 0.25%
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -40°C to 125°C
- Humidity Limits: 0 to 95% RH non-condensing
- Max Pressure (Proof): 100-200 inH2O depending on model
- Burst Pressure: 75-200 kPa depending on model
- Operating Range: 0.5 to 60 inH2O / 125 to 15000 Pa
- Protection: Optional parylene moisture coating
- Interfaces: I2C and SPI (automatic switching)
- Power Consumption: Low power mode for battery systems
- Electrical Timing: I2C and SPI compliant, timing diagrams specified
Buy the Buy All Sensors DLHR Series Pressure Part Number DLHRL30DE1BDCNAV8 Online
Order the All Sensors DLHR Series Digital Pressure Sensor today to benefit from precise measurements, robust digital interface support, and versatile applications across medical, HVAC, industrial, and environmental systems. Designed for non-corrosive gases, it offers high resolution up to 18 bits, fast response times, and optional moisture protection coatings. Whether integrating into critical control systems or portable devices, buy online now for quick delivery, superior accuracy, and reliable long-term operation in diverse conditions.
Buy All Sensors DLHRL30DE1BDCNAV8 low voltage digital pressure sensor now and experience unmatched reliability and high-resolution performance in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS DLHRL30DE1BDCNAV8?
You can click on the BUY or RFQ button to purchase DLHRL30DE1BDCNAV8 from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part DLHRL30DE1BDCNAV8?
You can download the DLHRL30DE1BDCNAV8 datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of DLHRL30DE1BDCNAV8?
AMPHENOL ALL SENSORS
