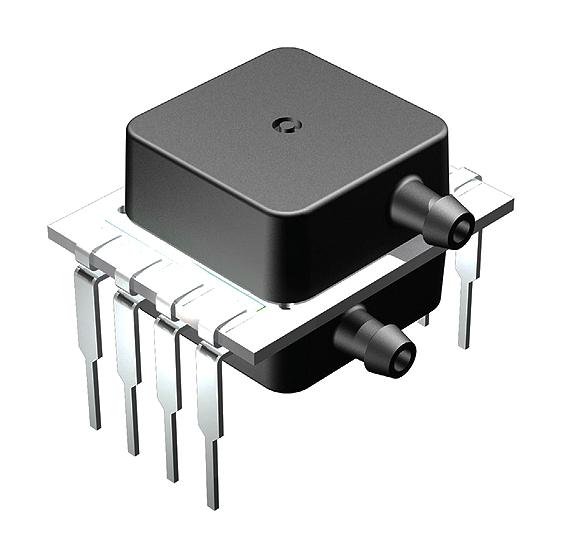

AMPHENOL ALL SENSORS DLV005DE1BDCNI3F Digital Pressure Sensor
The DLV Series miniature digital pressure sensors provide accurate measurement in the 5 to 60 psi range, suitable for medical, environmental, HVAC, and industrial controls. Featuring 3.3V or 5.0V supply options, SPI and I2C interfaces, and enhanced media protection with Sil-Gel coating, these sensors ensure stable performance over wide temperature ranges from -20°C to 85°C. They offer high accuracy better than 0.5%, low power modes, and are designed for non-corrosive gases, making them ideal for portable, battery-powered systems that require reliable pressure data with digital output, stability, and robustness.
AMPHENOL ALL SENSORS DLV005DE1BDCNI3F Digital Pressure Sensor Specifications:
- Pressure Range: 5 to 60 psi
- Supply Voltage: 3.3V or 5.0V
- Accuracy: Better than 0.5% over temperature
- Operating Temperature Range: -20°C to 85°C
- Media Compatibility: Non-corrosive, dry gases, air
- Output Interface: I2C, SPI
- Max Supply Voltage: 6 V
- Memory Counts: 13,107 Dec for DLV-015G, DLV-030G, DLV-060G
- Pressure Proof Pressure: 40 PSI (275 kPa) to 200 PSI (1,380 kPa)
- Burst Pressure: 275 to 1380 kPa (40 to 200 PSI)
- Temperature Coefficient: Span and Offset temperature shifts of 0.1% FSS
- Suitable for portable systems with low power modes
- Die Coating: Sil-Gel for enhanced media protection
- Humidity Range: 0 to 95% RH (non-condensing)
Buy the All Sensors DLV005DE1BD – Reliable Digital Pressure Sensor for Industrial Applications
Experience reliable pressure measurement with our digital pressure sensor designed for industrial, medical, and HVAC applications. Featuring digital output options with I2C and SPI interfaces, it offers high accuracy better than 0.5%, wide temperature range, and robust media protection. Its compact size and low power modes make it ideal for portable and battery-powered systems. Easy integration with various process controls, enhanced media resistance via Sil-Gel coating, and flexible supply voltage options ensure versatility, durability, and precision in demanding environments. Purchase online now for trusted performance.
Get All Sensors DLV005DE1BD today—built for precision and long-lasting durability in pressure measurement systems.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS DLV005DE1BDCNI3F?
You can click on the BUY or RFQ button to purchase DLV005DE1BDCNI3F from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part DLV005DE1BDCNI3F?
You can download the DLV005DE1BDCNI3F datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of DLV005DE1BDCNI3F?
AMPHENOL ALL SENSORS
