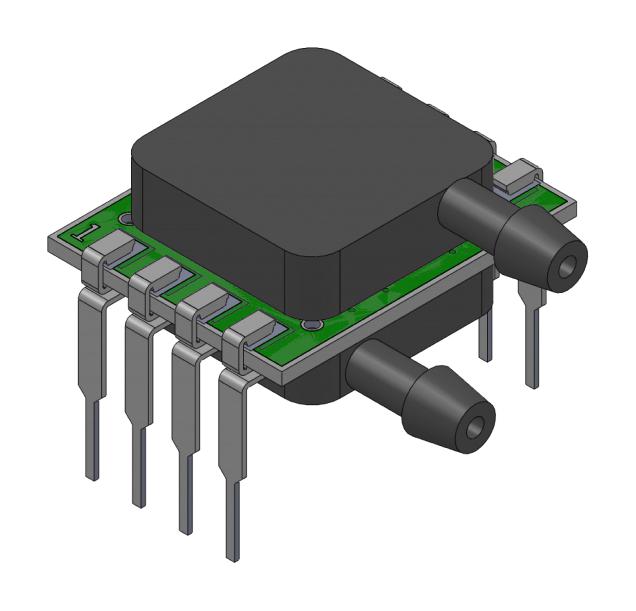

AMPHENOL ALL SENSORS DLVRF50DE1NDCNI3F Digital Pressure Sensor
The DLVR Series Mini Digital Pressure Sensor measures low pressure ranges from 0.5 to 60 inH20 with high accuracy and stability. It features a 3.3V supply with an optional 5V, and standard I2C or SPI interfaces for versatile integration into medical, environmental, HVAC, and industrial applications. Built on All Sensors’ CoBeam™ Technology, it offers excellent long-term stability, mini size, and optional moisture protection. Suitable for dry gases and non-corrosive fluids, it ensures reliable and precise digital pressure readings over wide temperature ranges.
AMPHENOL ALL SENSORS DLVRF50DE1NDCNI3F Digital Pressure Sensor Specifications:
- Pressure Ranges: 0.5 to 60 inH20
- Supply Voltage: 3.3V standard, 5V optional
- Interface: I2C standard, SPI option (8-lead DIP packages only)
- Accuracy: Better than 1.0% over temperature
- Operating Temp: -25°C to 85°C
- Proof Pressure: 300 inH20 (75 kPa)
- Burst Pressure: 800 inH20 (200 kPa)
- Output Resolution: 14-bit
- Power Consumption: Low power modes, 0.72 to 6.2 mA depending on mode
- Environment: Suitable for dry gases and non-corrosive fluids, optional moisture-protective coating
- Physical Dimensions: Multiple DIP and barbed lid packages, detailed drawings available
- Response Time: ~1.4 ms to 6.5 ms depending on mode
- Signal Filtering: Noise reduced option available
- Additional Features: Calibrated, compensated, and linearly corrected output, optional Parylene coating for moisture protection
Buy the All Sensors Series DLVR Pressure Sensor: DLVRF50DE1NDCNI3F
Enhance your measurement systems with the All Sensors Series DLVR digital pressure sensor. Offering 0.5 to 60 inH20 range, 3.3V/5V options, and I2C or SPI interfaces, it provides accurate, stable readings suitable for medical, HVAC, environmental, and industrial applications. Its compact design, low power consumption, and optional moisture coating make it perfect for portable and demanding environments. Order online now and get reliable pressure measurement technology delivered fast to optimize your projects.
Order your All Sensors Series DLVR pressure sensor DLVRF50DE1NDCNI3F today and ensure precise low-pressure measurement for your medical, HVAC, or industrial projects.
