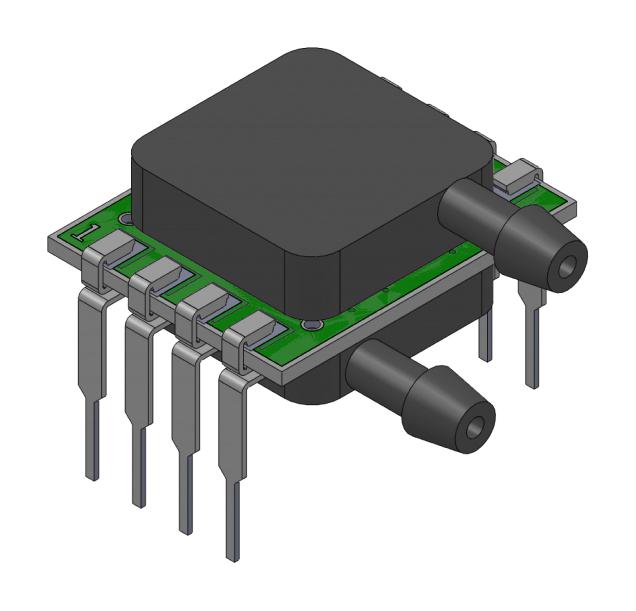

AMPHENOL ALL SENSORS DLVRF50DE1NDINI3F Digital Pressure Sensor
The DLVR Series Mini Digital Pressure Sensor offers accurate, stable measurements for pressure ranges from 0.5 to 60 inH2O. Based on All Sensors’ CoBeam Technology, it minimizes package stress and enhances long-term stability. Featuring optional Parylene coating for moisture and harsh media protection, the sensor supports 3.3V or 5V supply voltages and interfaces via I2C or SPI. It is ideal for medical breathing, environmental control, HVAC, industrial controls, and portable equipment, delivering high accuracy over wide temperature ranges in a compact form factor.
AMPHENOL ALL SENSORS DLVRF50DE1NDINI3F Digital Pressure Sensor Specifications:
- Pressure ranges: 0.5 to 60 inH2O
- Operating range: 0°C to 70°C (commercial)
- Supply Voltage: 3.3V or 5V
- Accuracy: Better than 1.0% over temperature
- Output resolution: 14-bit
- Interface: I2C, SPI (available only in 8-lead packages)
- Protection: Optional Parylene coating for moisture resistance
- Burst pressure: up to 800 inH2O depending on model
- Dimensions: Compact form factor, lead options include DIP, J-Lead, SMT
- Temperature Range: -25°C to 85°C
- Response time: approximately 1.0 ms, low power modes available
- Environmental Limits: Humidity 0-95% RH (non-condensing)
Buy the All Sensors Series DLVR Digital Pressure: DLVRF50DE1NDINI3F
Purchase the All Sensors Series DLVRF50DE1NDINI3F digital pressure sensor online today and experience precise, stable pressure measurement suitable for medical, HVAC, industrial, and portable applications. Its compact design, optional moisture protection, and flexible interfaces make it ideal for a wide range of demanding environments. With support for 3.3V or 5V power supplies, 14-bit output resolution, and high accuracy, this sensor guarantees reliable performance, easy integration, and long-term stability for your critical projects.
Order your All Sensors Series DLVRF50DE1NDINI3F digital pressure sensor today and ensure your projects benefit from reliable, high-accuracy pressure measurement.
