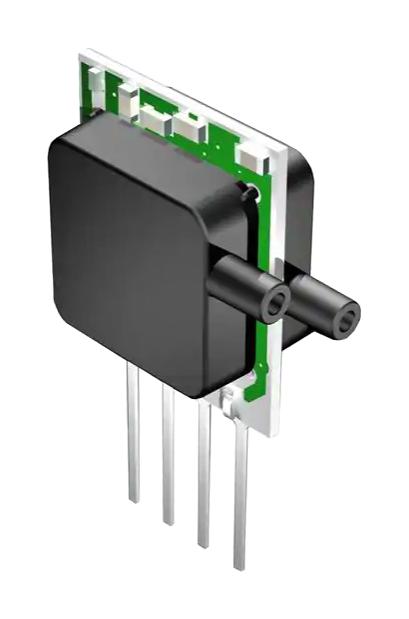

AMPHENOL ALL SENSORS DLVRF50DE1NSINI3F Digital Pressure Sensor
The DLVR Series Mini Digital Pressure Sensor offers accurate low-voltage digital measurements of pressure in ranges from 0.5 to 60 inches of water. With features like 3.3V or 5V supply options, I2C or SPI interfaces, and better than 1.0% accuracy over temperature, it is ideal for medical breathing, environmental controls, HVAC, industrial controls, and portable equipment. Built on All Sensors’ CoBeam Technology, this sensor provides high stability, long-term reliability, and optional moisture protection with Parylene coating, suitable for non-corrosive gases and dry air applications.
AMPHENOL ALL SENSORS DLVRF50DE1NSINI3F Digital Pressure Sensor Specifications:
- Pressure Range: 0.5 to 60 inH20
- Supply Voltage: 3.3V or 5V
- Interface: I2C or SPI
- Accuracy: Better than 1.0% over temperature
- Temperature Range: -40°C to 85°C
- Proof Pressure: Varies by range, up to 15,000 inH20
- Burst Pressure: Up to 800 inH20
- Response Time: Approx. 1.0 ms to 6 ms depending on mode
- Operating Humidity: 0 to 95% RH (non-condensing)
- Power Consumption: Low power modes available
- Resolution: 14-bit
- Dimensions: Refer to package drawings, approximately 0.9 inches in length
- Protection: Optional Parylene coating for moisture/harsh media
- Certifications: Not specified
- Lead Temperature (soldering): 270°C for 2-4 sec.
- Storage Temperature: -40°C to 125°C
- Environment: Suitable for dry gases and non-corrosive media
Buy the Buy All Sensors DLVRF50DE1NSINI3F Pressure Part Number DLVRF50DE1NSINI3F Online
Purchase the All Sensors digital pressure sensor online today. With its 0.5 to 60 inH20 range, 14-bit resolution, and dual interface options for I2C or SPI, it offers high accuracy and reliability. Perfect for medical breathing devices, HVAC control, environmental monitoring, and industrial applications, this sensor features low power consumption, optional moisture protection, and robust construction. Order now to enhance your process control systems with proven sensor technology that ensures long-term stability and precision in demanding environments.
Buy All Sensors DLVRF50DE1NSINI3F now and experience unmatched reliability and performance in pressure measurement, essential for medical, HVAC, and industrial applications.
