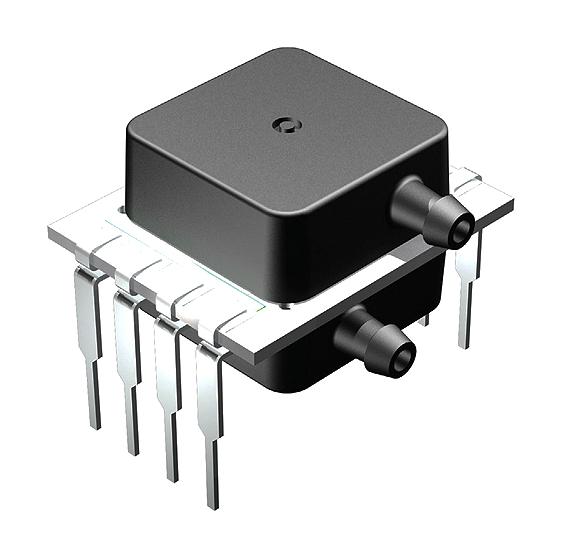

AMPHENOL ALL SENSORS DLVRL02DE1BDINI3F Digital Pressure Sensor
The DLVR Series Low Voltage Digital Pressure Sensors provide accurate digital pressure measurements suitable for medical, environmental, HVAC, and industrial applications. Utilizing All Sensors’ CoBeam Technology, these sensors offer high long-term stability and position sensitivity, with pressure ranges from 0.5 to 60 inH2O. They support both I2C and SPI interfaces, operate at 3.3V or 5V, and feature integrated temperature compensation, making them ideal for portable, handheld, and process control systems. Optional moisture-resistant parylene coating enhances durability in harsh environments.
AMPHENOL ALL SENSORS DLVRL02DE1BDINI3F Digital Pressure Sensor Specifications:
- Pressure ranges: 0.5 to 60 inH2O (±0.15 inH2O typical)
- Supply Voltage: 3.3V or 5V
- Interface: I2C (standard), SPI (option)
- Accuracy: Better than 1.0% over temperature
- Output resolution: 14-bit
- Operating temperature: -25°C to 85°C
- Proof pressure: Up to 15,000 inH2O depending on model
- Burst pressure: Up to 800 inH2O
- Power consumption: Low power modes available, sleep current as low as 0.5 μA
- Packaging options: DIP, SMT packages with optional parylene coating
Buy the All Sensors DLVRL02DE1BD – Reliable Digital Pressure Sensor for Industrial Applications
Order the DLVRL02DE1BD digital pressure sensor online today to enhance your industrial or medical system's accuracy and stability. With support for I2C and SPI interfaces, 3.3V/5V operation, and optional moisture protection, this sensor ensures long-term reliability. Its high resolution and calibration guarantee precise pressure readings, making it suitable for environmental control, HVAC, and portable equipment. Secure quick delivery, easy integration, and exceptional performance—purchase now and improve your process control equipment.
Buy All Sensors DLVRL02DE1BD now and experience unmatched reliability and performance in pressure measurement for industrial and medical systems.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS DLVRL02DE1BDINI3F?
You can click on the BUY or RFQ button to purchase DLVRL02DE1BDINI3F from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part DLVRL02DE1BDINI3F?
You can download the DLVRL02DE1BDINI3F datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of DLVRL02DE1BDINI3F?
AMPHENOL ALL SENSORS
