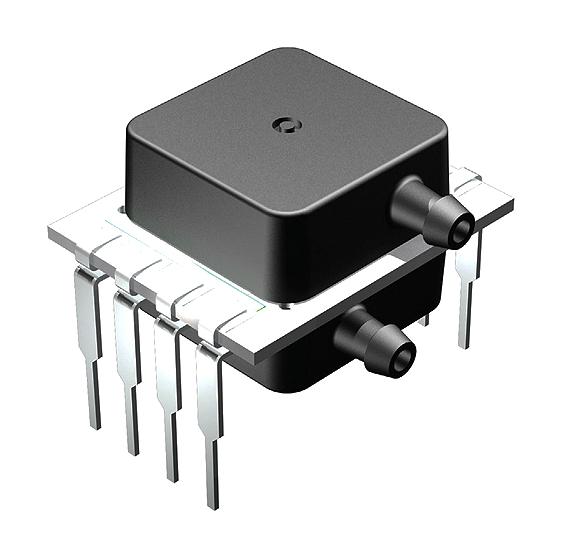

AMPHENOL ALL SENSORS DLVRL05DE1BDCNI3F digital pressure sensor
The DLVR Series digital pressure sensor, model DLVRL05DE1BDCNI3F, offers precise measurements in low voltage designs. With pressure ranges from +0.5 to 60 inH₂O, it features 14-bit output resolution, I2C or SPI interfaces, and optional Parylene coating for moisture protection. Designed for medical, environmental, HVAC, and industrial applications, it provides accurate, stable readings over wide temperature and environmental conditions. Its compact package and low power modes make it suitable for portable, battery-powered systems requiring reliable pressure sensing with high accuracy and long-term stability.
AMPHENOL ALL SENSORS DLVRL05DE1BDCNI3F digital pressure sensor Specifications:
- Pressure Range: +0.5 to 60 inH₂O
- Pressure Span: 8,192 Counts (differential) or 13,107 Counts (gage)
- Output Resolution: 14-bit
- Supply Voltage: 3.3V / 5V (optional)
- Interface: I2C or SPI (8-lead DIP package only for SPI)
- Temperature Range: -25°C to 85°C
- Pressure Accuracy: Better than 1.0% over temperature
- Response Time: Approximately 6 ms (low power mode)
- Power Consumption: Low power modes available, ranging from 0.72 to 6.5 mA
- Environmental Limits: Non-condensing humidity 0-95% RH, storage -40°C to 125°C
- Physical Package: E1NS or E1BD packages, with suggested pad layout
- Protected by optional Parylene coating for moisture resistance
- Supports continuous or triggered measurement modes with internal DSP compensation
- Digital data format includes status bits, pressure, and temperature in 16-bit plus data bits
Buy the Buy Sensors Pressure Measurement Part Number DLVRL05DE1BDCNI3F Online
Order the DLVR series digital pressure sensor online today and experience precise low-voltage pressure measurement ideal for medical, HVAC, industrial, and environmental controls. This sensor offers high-resolution 14-bit output, multiple communication interfaces including I2C and SPI, and optional moisture protection with Parylene coating. Its compact design and low power consumption make it perfect for portable, battery-powered applications. Ensure accurate, stable readings over a wide temperature range, supported by long-term stability and robust environmental specifications. Buy now for seamless integration into your process control systems.
Get Sensors Pressure Measurement DLVRL05DE1BDCNI3F today—optimized for high accuracy and low power operation in portable and industrial systems.
Frequently Asked Questions
Where can I buy AMPHENOL ALL SENSORS DLVRL05DE1BDCNI3F?
You can click on the BUY or RFQ button to purchase DLVRL05DE1BDCNI3F from an authorized AMPHENOL ALL SENSORS distributor.
How do I troubleshoot issues or seek technical support for part DLVRL05DE1BDCNI3F?
You can download the DLVRL05DE1BDCNI3F datasheet or visit the AMPHENOL ALL SENSORS website for support.
Who is the manufacturer of DLVRL05DE1BDCNI3F?
AMPHENOL ALL SENSORS
