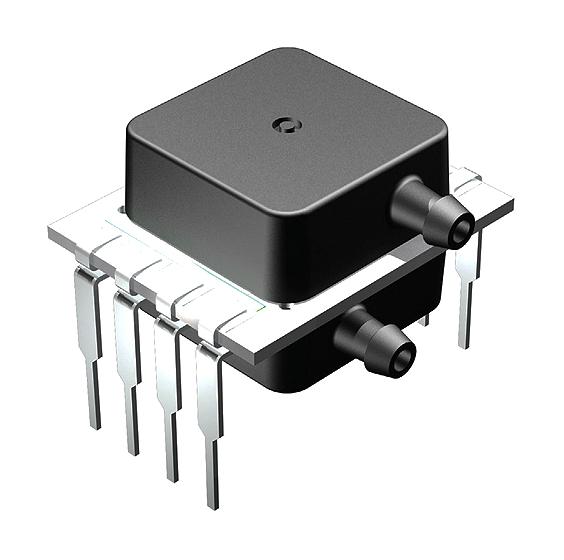

AMPHENOL ALL SENSORS DLVRL30DE1BDCNI3F Digital Pressure Sensor
The DLVR Series Low Voltage Digital Pressure Sensors offer accurate measurement of pressure ranges from +0.5 to 60 inH2O, with configurable interfaces including I2C and SPI. Designed for applications such as medical breathing, environmental controls, HVAC, and industrial systems, these sensors feature All Sensors' CoBeam™ Technology for enhanced stability. They operate on a supply voltage of 3.3V or 5V, provide compensated temperature readings, and are optimized for non-corrosive media, with optional Parylene coating for moisture protection. Compact and low power, they are ideal for portable equipment and process control.
AMPHENOL ALL SENSORS DLVRL30DE1BDCNI3F Digital Pressure Sensor Specifications:
- Pressure Range: +0.5 to 60 inH2O
- Supply Voltage: 3.3V or 5V
- Interface Options: I2C, SPI
- Accuracy: Better than 1.0% over temperature
- Output Resolution: 14-bit
- Temperature Range (Operating): -25°C to 85°C
- Proof Pressure: 300 inH2O (varies by model)
- Burst Pressure: 75 to 200 inH2O (models varying)
- Storage Temperature: -40°C to 125°C
- Humidity Limits: 0 to 95% RH non-condensing
- Power Consumption: Low power modes available
- Dimensions: Package options vary; compact form factor
- Calibration: Calibrated and compensated for accuracy
- Media Compatibility: Non-corrosive, dry gases, air
- Coating: Optional Parylene for moisture and harsh media
Buy the All Sensors Series DLVR Pressure Sensor: DLVRL30DE1BDCNI3F
Purchase the All Sensors DLVRL30DE1BDCNI3F digital pressure sensor online today and enjoy precise, stable pressure measurements from 0.5 to 60 inH2O. Ideal for medical breathing devices, environmental controls, HVAC systems, and industrial controls, this sensor features configurable interfaces including I2C and SPI, and operates at 3.3V or 5V. Its compact, low-power design ensures long-lasting performance in portable and process control applications. Optional moisture protection coating enhances durability for harsh environments, making it a reliable choice for your measurement needs.
Get All Sensors DLVRL30DE1BDCNI3F today—built for precision, stability, and low power consumption in pressure measurement applications.
